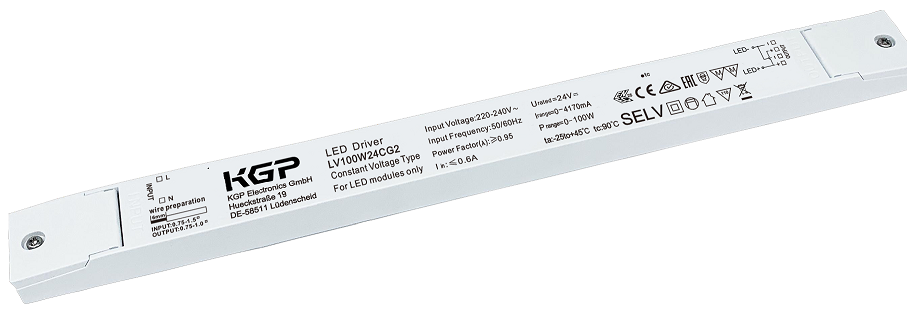

Slim CV Led driver of 100-250w

  Slim CV series Led driver,the series has many advantages, the most striking feature is ultra-thin,the thickness of the product is only 16mm, of which LV100W24CG2/LV150W24CG2/LV250W24CG2 efficiency can reach 92%-93%,the  Led driver, is suitable for line lights, constant voltage lamp belt.Cost-effective, meet a variety of lighting options   1.Product Feature   Current ripple: ±5% Protection: open circuit / short circuit / overload / class II Start time: ≤0.5S (220-240VAC) Ambient Temp: -25~45℃ Storage Temp: -25~85℃ 5 years warranty Certificates: CE/ENEC/SAA/CB/CCC Application: Linear light 100w/150w Size:350*30*18mm (L*W*H) 250w Size:400*40*22mm (L*W*H)   2.Product parameter list 3.Graph PF VS LOAD s Curve     THD VS LOAD Curve     Efficiency VS LOAD Curve     4.Dimension   5.Wiring instructions    All connections must be kept as short as possible to ensure good EMI behaviour  •…
