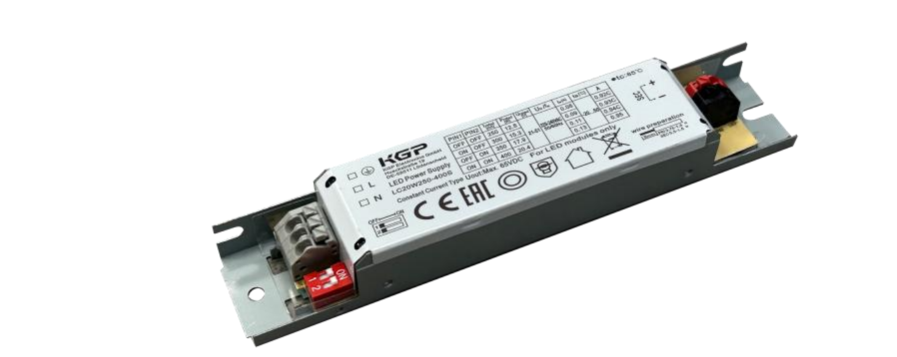

20w SELV Linear CC LED Driver

  1.Product feature Product Feature Current ripple: ±5% Protection: No-load / short circuit / overload / class I Start time: ≤0.5S    (230VAC，full load) Ambient Temp:-20~50℃ Storage Temp: -25~85℃ 5 years warranty Certificates: : CE  Application: Linear light Size: 20W: 128*27.8*21mm   2.Product parameter list   3.Output Current Setting 4.Connected quantities of different current Breaker 5.Electrical values 6.Wiring Diagram 7.Packing information 8.Wiring instructions • All connections must be kept as short as possible to ensure good EMI behaviour • Mains leads should be kept apart from LED Driver and other leads (ideally 5 – 10 cm distance) • Advice the maximum length of output wires is 3 m • Secondary switching is not permitted（Except for constant voltage） • Incorrect wiring can damage LED modules. • The wiring must be protected against short circuits to earth (sharp edged meta…
