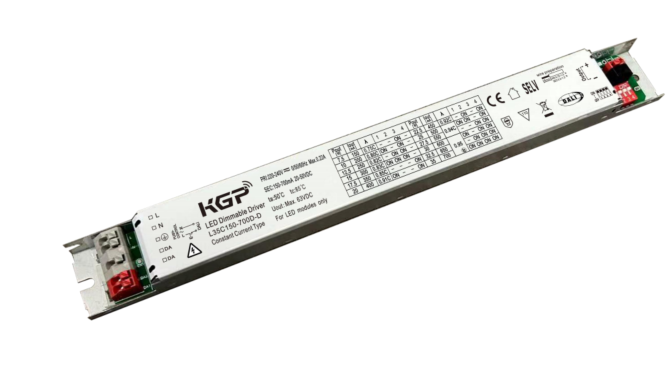

35w Linear DALI SELV LED Driver

1.Product feature Product Feature Current ripple: ＜3% Dimming Range: 1%-100% Dimming type: DALI-2 DALI Function：CLO,Corridor Function,EL, Part251.252.253,Push Dim Protection: No-load/ short circuit / overload / class I /SELV Start time: ≤1S    (230VAC，full load by DALI system) Ambient Temp:-25~50℃ Storage Temp: -25~85℃ 5 years warranty Certificates: CE Application: Linear light Size: 280*30*21mm (L*W*H) 2.Product parameter list 3.Connected quantities of different current Breaker 4.Electrical values 5.Wiring Diagram 6.Packing information 7.Wiring instructions • All connections must be kept as short as possible to ensure good EMI behaviour • Mains leads should be kept apart from LED Driver and other leads (ideally 5 – 10 cm distance) • Advice the maximum length of output wires is 0.5 m • Secondary switching is not permitted（Except for constant voltage） • Incorrect wiring can damage LED modules. • The wiring must be…
