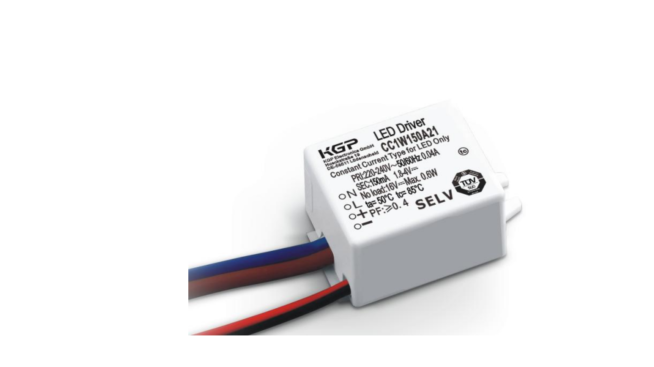

TINY Built In Type LED Driver

1.Product feature Product feature Current ripple: ±5% Protection: open circuit / short circuit / overload / class II Start time:≤0.5S(230VAC，full load) Ambient Temp: -25~50℃ Storage Temp:-25~85℃ 5 years warranty Certificates: TUV/CE/SAA/CCC Application: Wall lamp，Downlight，spotlight Size: 33.9*22.8*17mm (L*W*H) 2.Product parameter list 3.Connected quantities of different current Breaker 4.Lifetime curve 5.Wiring Diagram 6.Packing information 7.Wiring instructions • All connections must be kept as short as possible to ensure good EMI behaviour • Mains leads should be kept apart from LED Driver and other leads (ideally 5 – 10 cm distance) • Advice the maximum length of output wires is 3 m • Secondary switching is not permitted（Except for constant voltage） • Incorrect wiring can damage LED modules. • The wiring must be protected against short circuits to earth (sharp edged metals parts, metal cable clips, louver, e…
