3 Phase Invisible DALI Led driver

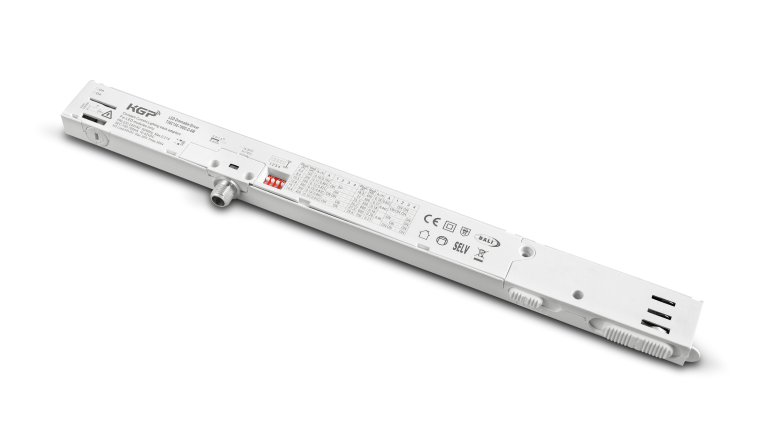

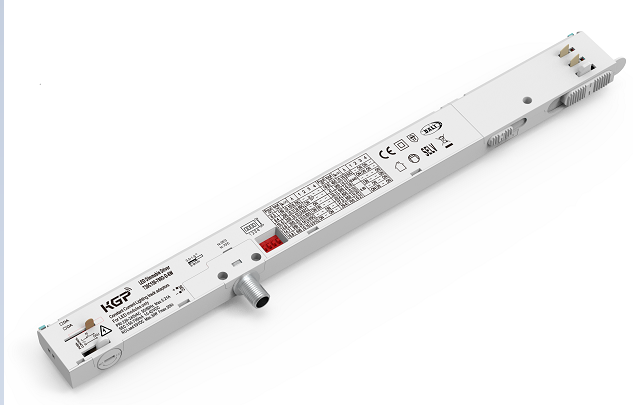

We have made a disruptive design in the industry on the product's housing, which is completely hidden from the track. This product is DALI dimming integrated in-track driver, using our self-developed DALI program and has competed DALI functions.   1.Product Feature Current ripple: ±5% Dimming Range: 1%-100% Dimming type：DALI-2 DALI Function：CLO,Corridor Function,Part251.252.253,Push Dim Protection: No-load / short circuit / overload / class II Start time: ≤1S    (230VAC，full load by DALI system) Ambient Temp:-20~35℃ Storage Temp: -25~85℃ 5 years warranty Certificates: CE Application:Track light Size: 308.2x13.8x28.2mm (L*W*H)   2.Product parameter list       3.Electrical values     4. DALI dimming curve formula for DALI dimming. X(n)=10^{[(n-1)/(253/3)]-1},Here,n means the target dimming stage of the total 254 stages.X(n) means the perc…
