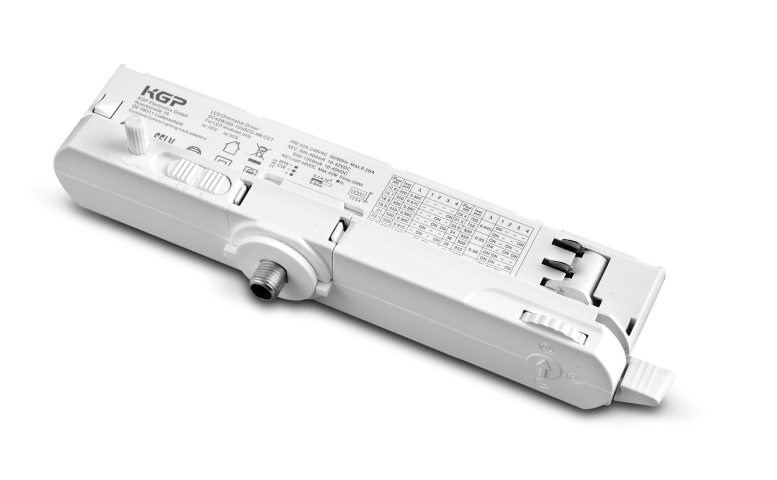

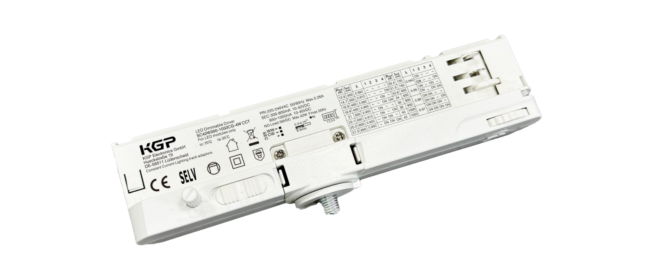

3 Phase CCT+Dimming LED Driver

This 3Phase intrack driver has 3 kinds of color temperature: cold, cold white, white. Push the switch on the housing to change color temperature. It also can dimming in the range of 1-100% by adjustable resistance. Rotate the handle in the housing to dimming.   1.Product feature Current ripple:±5% Protection: no-load/short circuit/overload /class II Dimming Type: adjustable resistance Color Temperature: C/CW/W IP Grade: IP20 Start time:<0.5s/230V Ambient Temp: -20~35℃ Storage Temp：-25~85℃ 5 years warranty Certificates：CE Application:Track light Size: 178*31*45mm 2.Product parameter list 3.Lifetime curve 4. Wiring Diagram 5. Lamp Screw Type 6.Suitable for following tracks 7.Phase track light rail specification 8.Wiring instructions • All connections must be kept as short as possible to ensure good EMI behaviour • Mains leads should be kept apart from LED Driver and other leads (ideally 5 – 10 cm distance) • Advice the maximum le…
