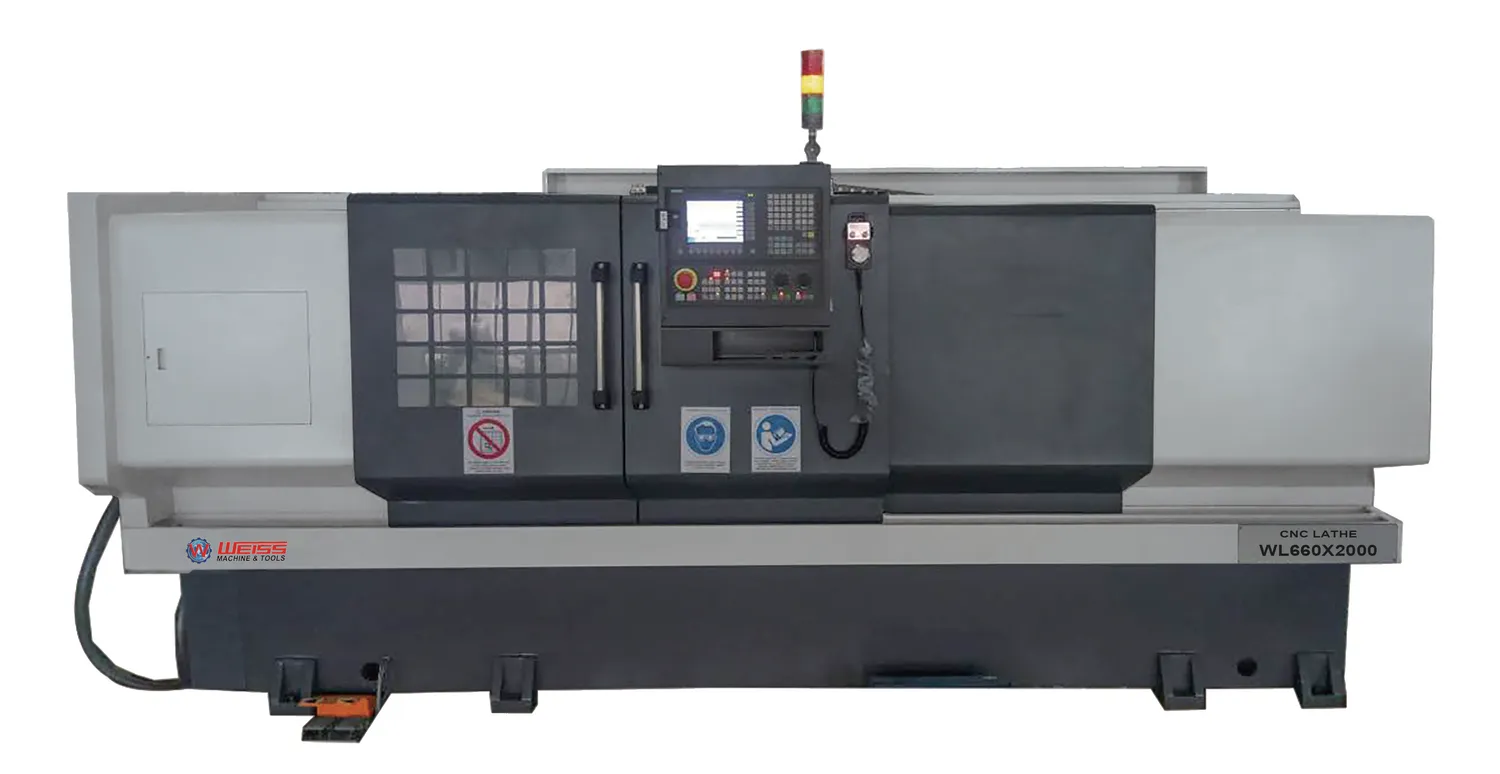

WL660 CNC-FLAT BED HARD WAY CNC LATHE

Specifications    CONTENT METRIC INFO. ITEM NO. 10120661/10120662/10120663 Specification Swing over bed Φ660mm Swing over cross slide Φ460mm Distance between center 1500/2000/3000mm Spindle nose A2-8 or A2-11(op.) Spindle bore Φ86mm or Φ105mm(op.) Taper of spindle 1:20 Chuck 10” or 12”(op.) or 15” (op.) Range Of spindle speed 3 Steps: 30-100,100-500,150-1000rpm X axis travel 350mm Z axis travel 1500/2000/3000mm Turret 4 or 6 or 8 (op.) Max. section of tool 32X32mm Travel of tailstock sleeve 245mm Diameter/taper of tailstock sleeve Φ102mm/MT5 Main motor power 11KW or 15KW (op.) X axis feeding power 10NM Z axis feeding power 15NM Coolant pump power 250W Bed width 460mm Machine dimension 3900X1600X1830mm(2M) Weight 4500~5100kgs
