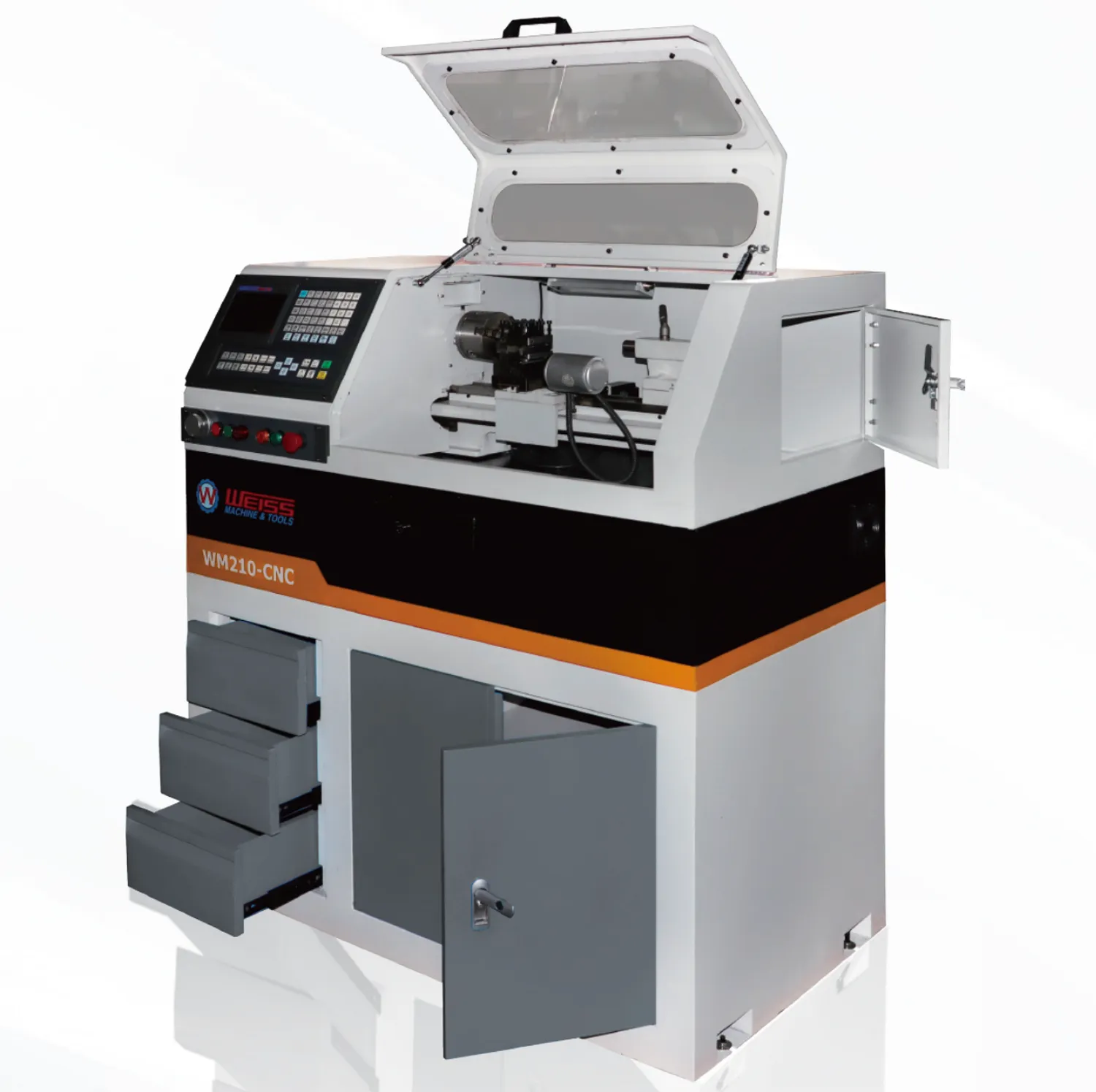

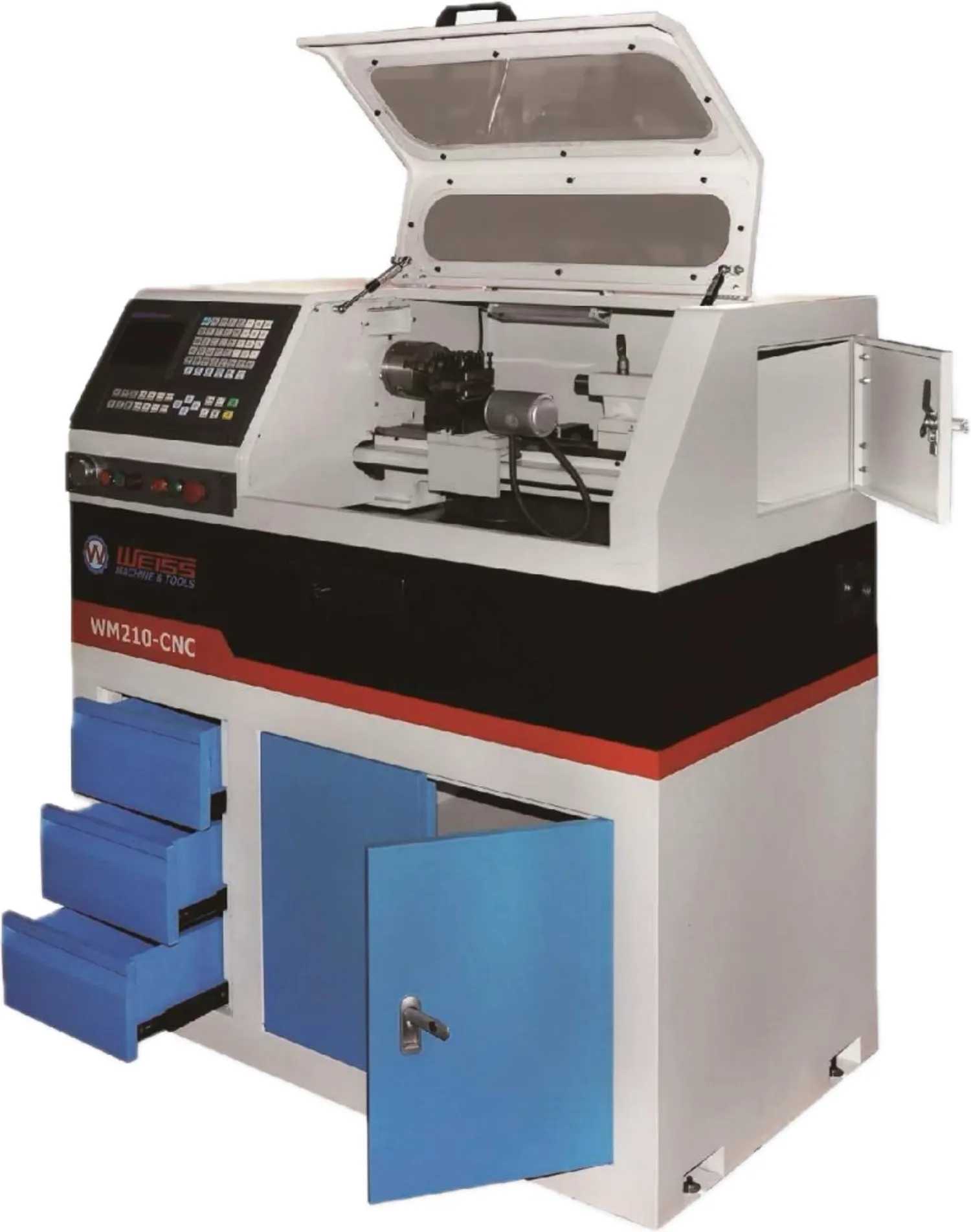

WL210 CNC-FLAT BED HARD WAY CNC LATHE

Features   WL210 CNC provides an affordable and approachable lathe that allows any user to quickly machine parts without CNC training, ideal for tighten space.It runs on single-phase, household power.The machine adopts ISO International Code, Keyboard Manual Data input, and it is also provided with program of power cut-off protection and functions of automatic diagnosis, and with RS232 interface.Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.   Specifications   Model No. WL210CNC ITEM NO. 101102105 CONTENT Metric Imperial Swing over bed Φ210mm   Swing over cross slide 130mm   Max. processing length 400mm   Spindle Spindle bore Φ21mm   Spindle taper MT3 MT5 Spindle speed 50-2250rpm 50-3500rpm Feed speed X-axis 1000mm/min   Z-axis 1000mm/min   Motor torque X-axis 2N.m 3.18 N.m Z-axis 2N.m 3.18 N.m Precision Repositioning accuracy ±0.01mm   P…
