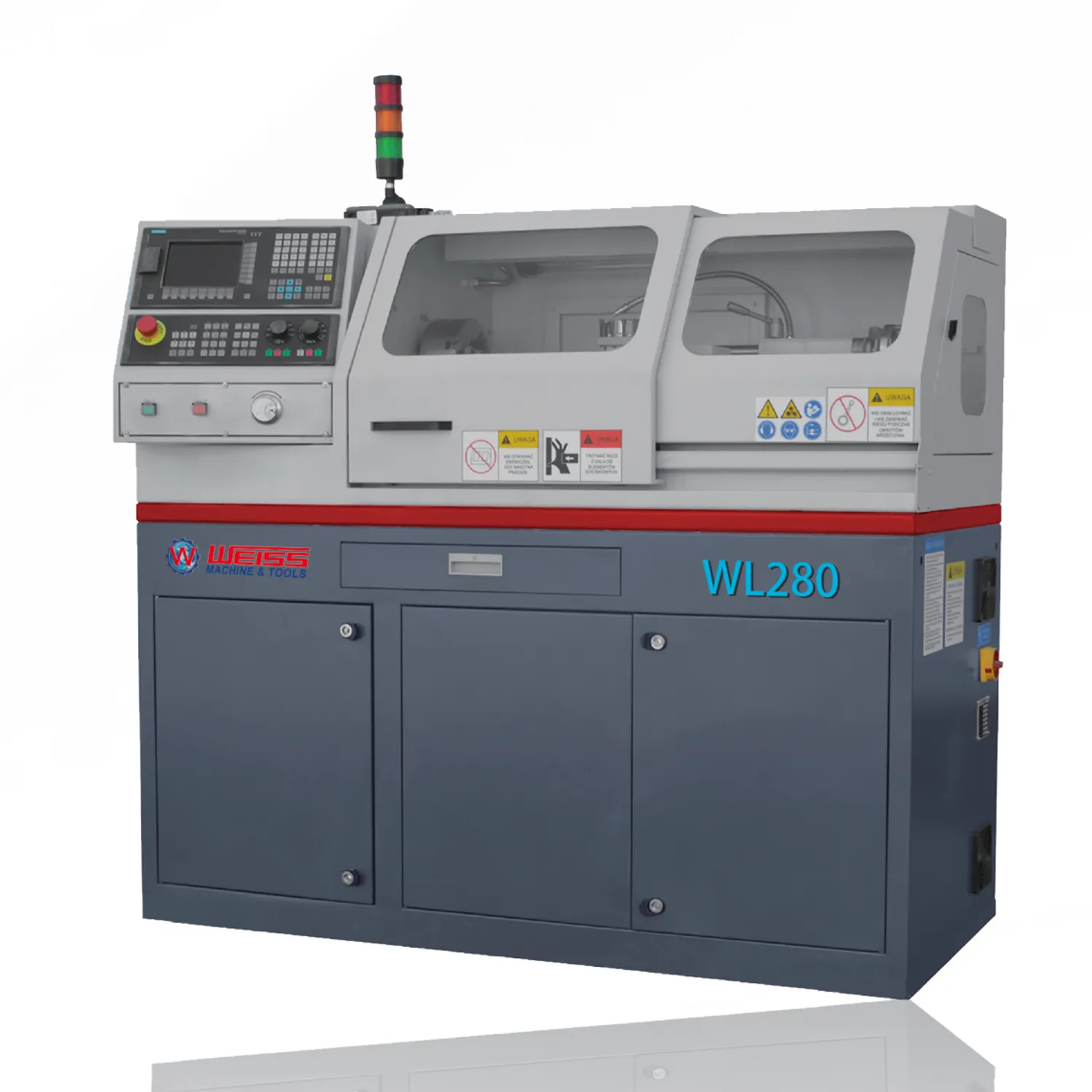

WL280 CNC-FLAT BED HARD WAY CNC LATHE

Features   1、The machine adopts ISO International Code, Keyboard Manual Data input, and it is also provided with program of power cut-off protection and functions of automatic diagnosis, and with RS232 interface.2、Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.3、Either vertial or horizontal 4-station or 6-station   Specifications   CONTENT METRIC INFO. IMPERIAL INFO. ITEM NO. 10120280 Specification Swing over bed Φ280mm Φ11.02" Swing over cross slide Φ150mm Φ5.91" Distance between center 500mm 19.69" Spindle nose A2-5 A2-5 Spindle bore Φ40mm Φ1.57" Taper of spindle MT5 MT5 Chuck 5" 5" Range Of spindle speed 150~2500rpm or 30~4000rmp (op.) 150~2500rpm or 30~4000rmp (op.) X axis travel 145mm 5.71" Z axis travel 500mm 20" Turret 4 4 Max. section of tool 12 X 12 mm 0.47" X 0.47" Travel of tailstock sleeve 100mm 4" Diameter/taper of tailstock sleeve Φ45mm/MT3 &Phi…
