Used Transformer Oil Return Line Filter Housing

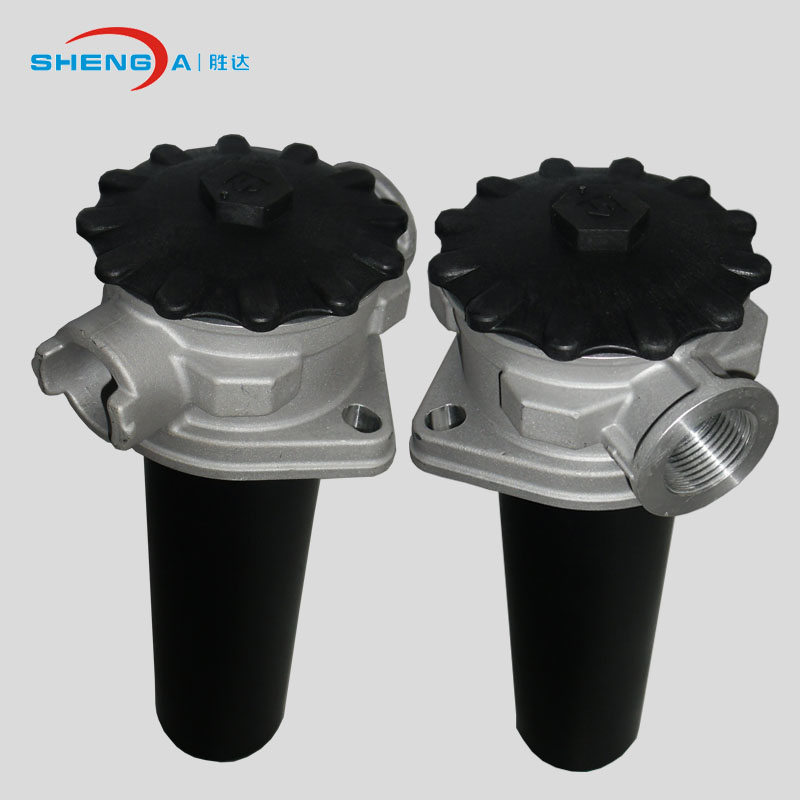

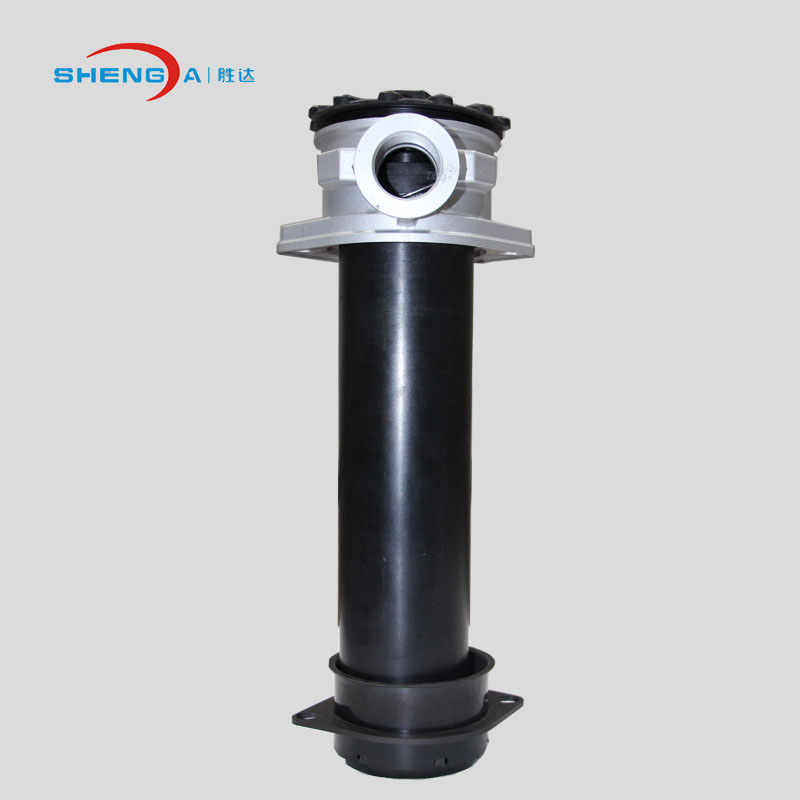

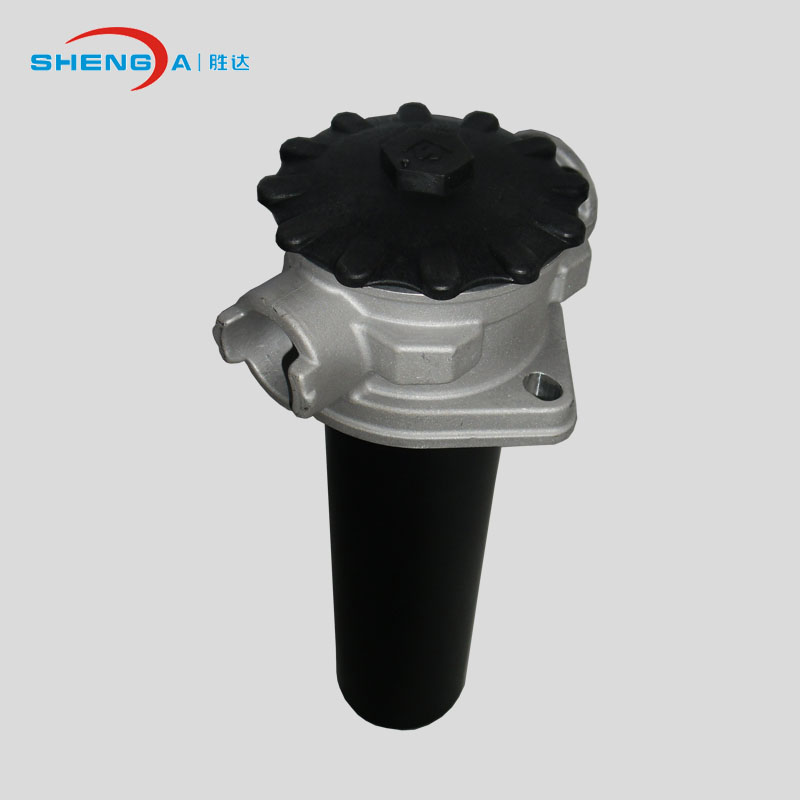

Return Line Oil Filter (SDRFM) ---up to 850 l/min ---up to 10 bar ---material: aluminum/ steel/ engineering plastics 1.    Introduction: Return oil filter (SDRFM type) is mainly installed on the top of oil tank, to remove the impurities like abrasives from the pipeline, in that way, to protect the oil tank, and prolong the life time. It consists of a filter housing with inlet and housing. 2.    Filter Element • Max. Allowable DP:  BN/ HC – 20 bar         P/HC – 10 bar           W/HC – 20 bar         3.    Description Mounting         As tank-top filter Temperature range        -30℃~ +100℃ (short term -40℃) Pressure setting of clogging indicator △Pa= 2 bar – 0.2b…
