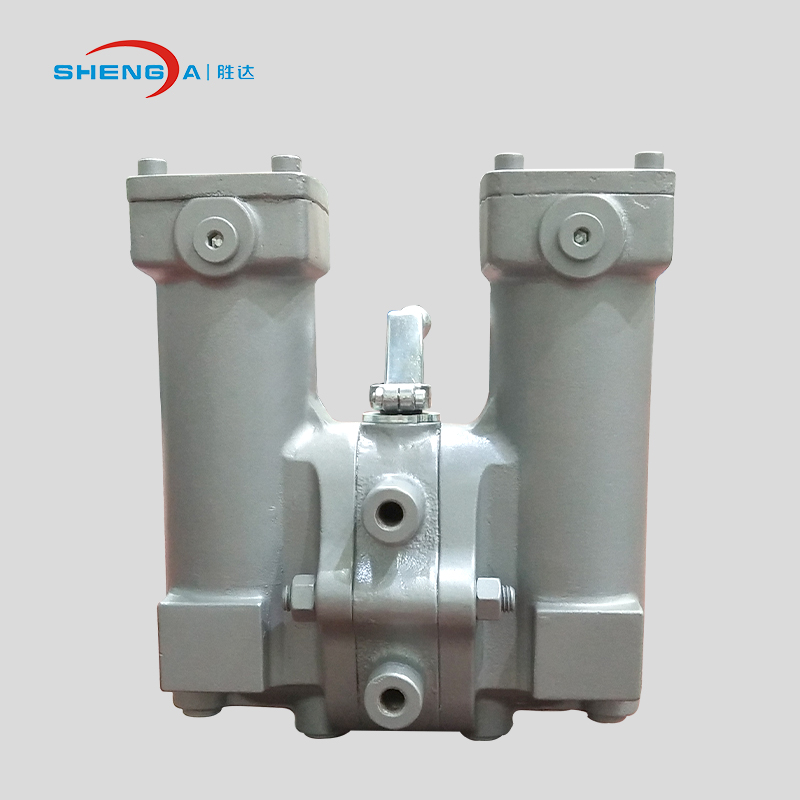

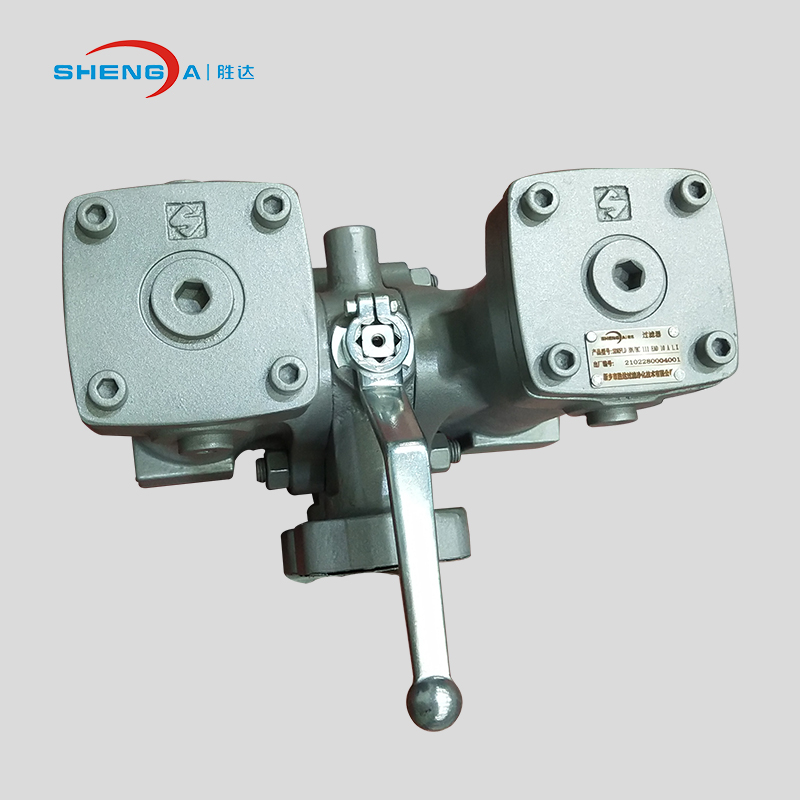

Cast duplex fuel filtration assembly

Change-over Inline Oil Filter (SDRFLD) (Cast Version) ---cast /steel material ---up to 1300 L/min ---up to 25/40 bar ---equipped with a ball change-over valve 1. Technical Specifications 1.1 Filter Housing Construction The filter housings are designed in accordance with international regulations. The two sections of the filter housing, each of which has a bolt-on cover plate, are connected by means of a ball change-over valve. Standard equipment: *  connections for venting and draining *  connection for a clogging indicator 1.2  Filter Elements Max. Allowable D.P.: BN/HC：20bar；   P/HC: 10bar    W/HC: 20bar      V: 210bar 2.    Description Mounting                    &…
