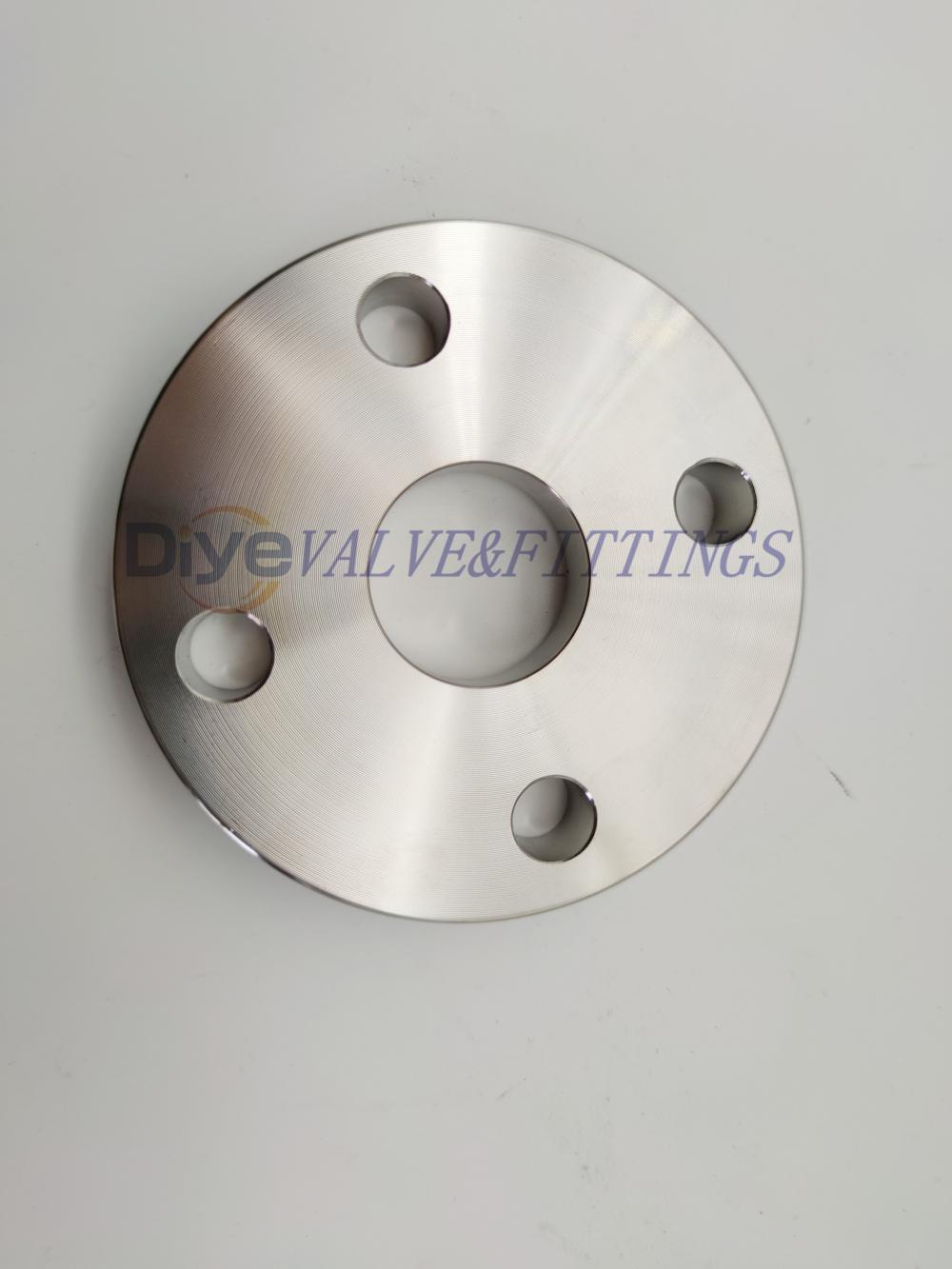

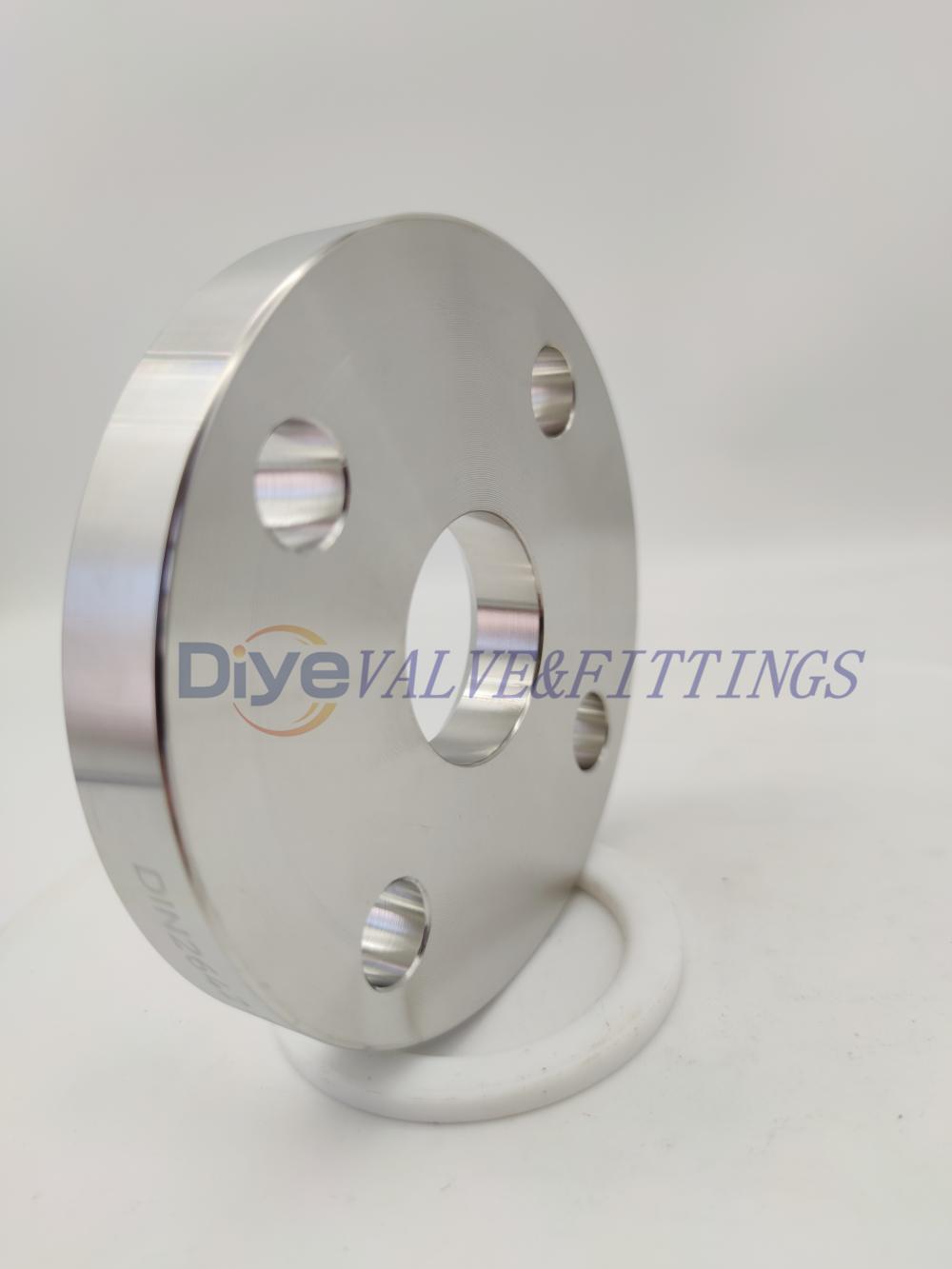

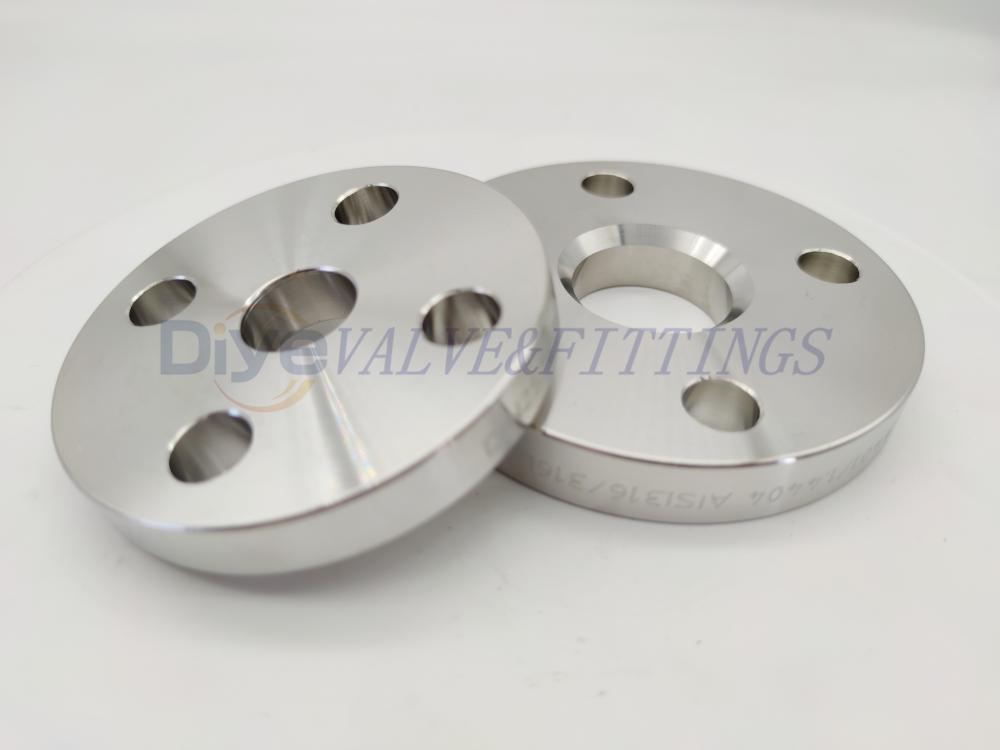

Stainless Steel Lapped Joint Flange

ASME B16.5 Threaded Flanges Specification: Standard : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings Size : 1/2" (15 NB) to 48" (1200NB) Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) BS: BS4504 , BS4504, BS1560, BS10 DIN: DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 Weld neck flanges are the most popular type of flanges with a weld bevel at the end of the neck extension. This type of flange is designed to be butt welded directly to the pipe to provide a superior and relatively natural form connection. In larger sizes and higher pressure ratings, this is almost the only type of flange connec…
