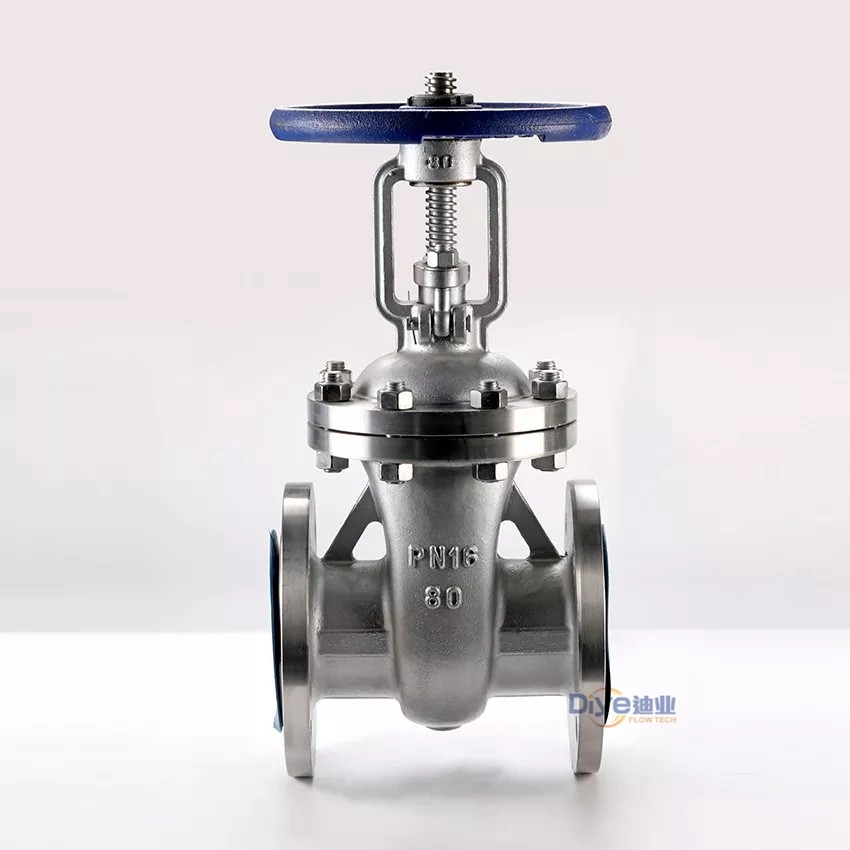

Flanged Stainless Steel Gate Valve

Applicable Standards: Design & Manufacture: API 600, API 6D, BS1414 Face-to-face: ANSI B16.10, API 6D Flanged Connection: ANSI B16.5, ASME B16.47  Butt Welded End: ANSI B16.25 Test And Inspection: API 598, API 6D Pressure & Temperature: JB/T3595 ANSI B16.34 Material: CF3M CF3 CF8M CF8 CF8C WCB WC6 WC9 C5 C12 LCB LCC A890 GR.4A Size Range: DN50-DN600 2“-24” Pressure Rating: 1.0Mpa-10MPa 150LB-600LB Temperature Range: -196°C~600°C Design Description: - Full Port Design  - OS&Y, Outside Screw and Yoke - BB, Bolted Bonnet - Flexible Wedge, Fully Guided - Choice of Solid or Split Wedge  - Rising stem - Available with gear operators, electric actuators, pneumatic actuators, bypasses, locking devices, chain wheels, extended stems and bonnets for cryogenic service and many others are available to meet the customers’ requirements. - Flange Ends and Butt welding Ends - Low torque design, smoot…
