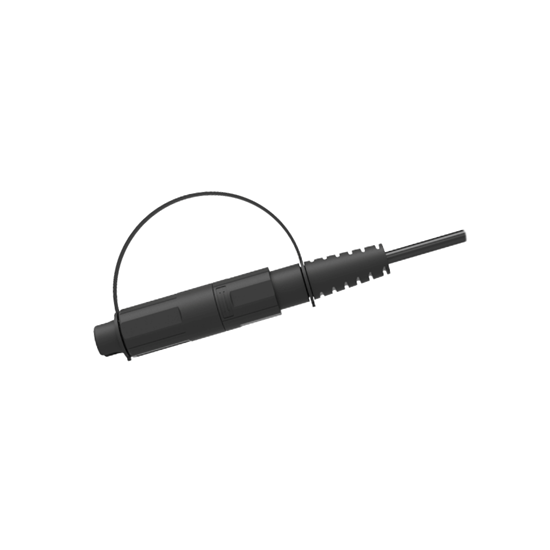

Toptap Male Cable Assembly

Application: Fiber Optic IP68 Hardened Cable Assembly Cable Type: Round Cable, Flat Cable or Figure 8 Drop Cable with messenger wire Fiber Type: Singlemode G652D, Singlemode G657A2, Singlemode G657B3 Sheath Material: Low Friction LSZH,PE,PVC,OFNR,OFNP Housing Material: PEI+30%FV Connector Type: SC Simplex, LC Duplex, MTP and MPO Compatible: Corning Optitap,Amphenol H-Connector Quality Level: Grade B or Grade C Standard compliance: IEC, Telcordia, RoHs Test Standard:          1. Endface: IEC-61300-3-35 2. Optical Performance: IEC-61300-3-34  3.Mechanical Tensile: IEC-61300-2-6,IEC-61300-2-4 4.Durability: IEC 61300-2-2 5.Vibration: IEC 61300-2-1 6.Torision: IEC 61300-2-5 7.Drop: IEC 61300-2-12(Method A) 8.Static Load: IEC 61300-2-42  9.Flex: GR‐326‐CORE, 4.4.3.2 10.Cold Test:  IEC 61300-2-17 11.Dry HEAT:  IEC 61300-2-18 12.Damp Heat: IEC 61300-2-19 13.Temperature Change: IEC 61300-2-22 14.Damp Heat: IEC 60068-2-30 15.Salt Mist: IEC 61300-2-26…
