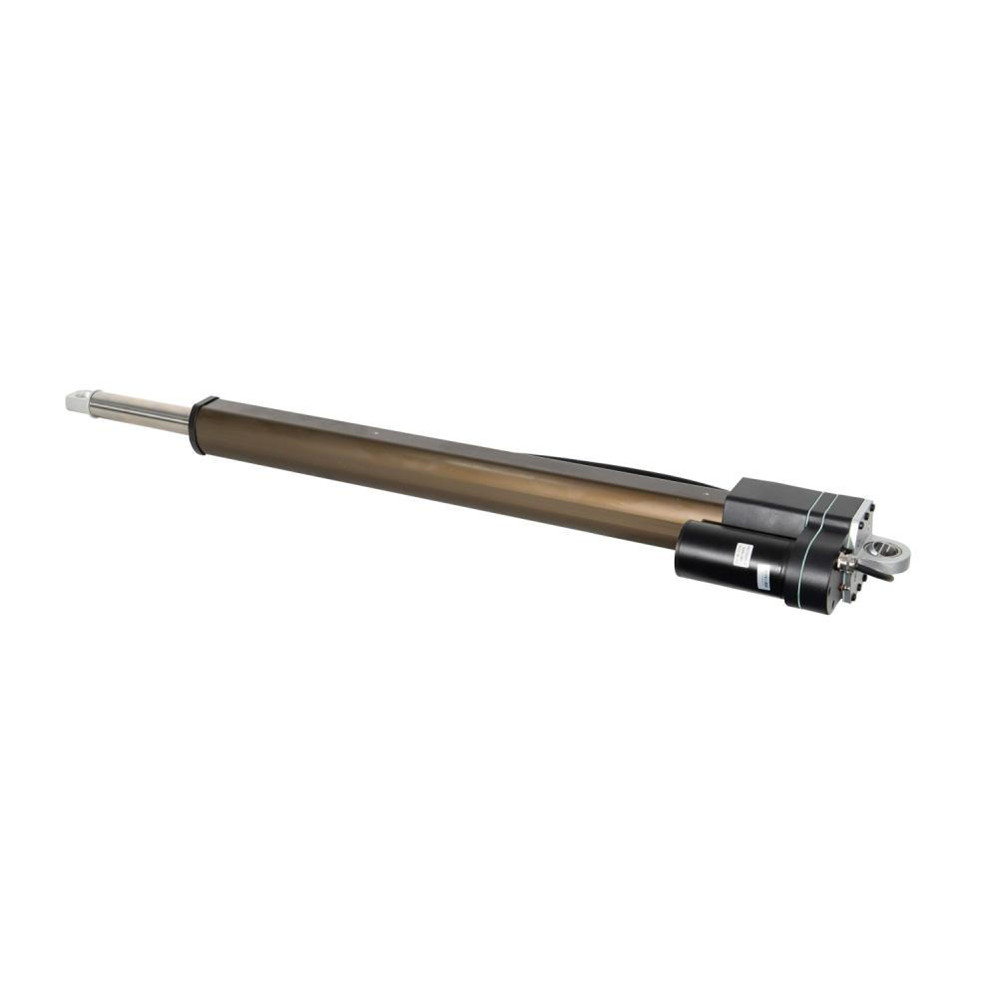

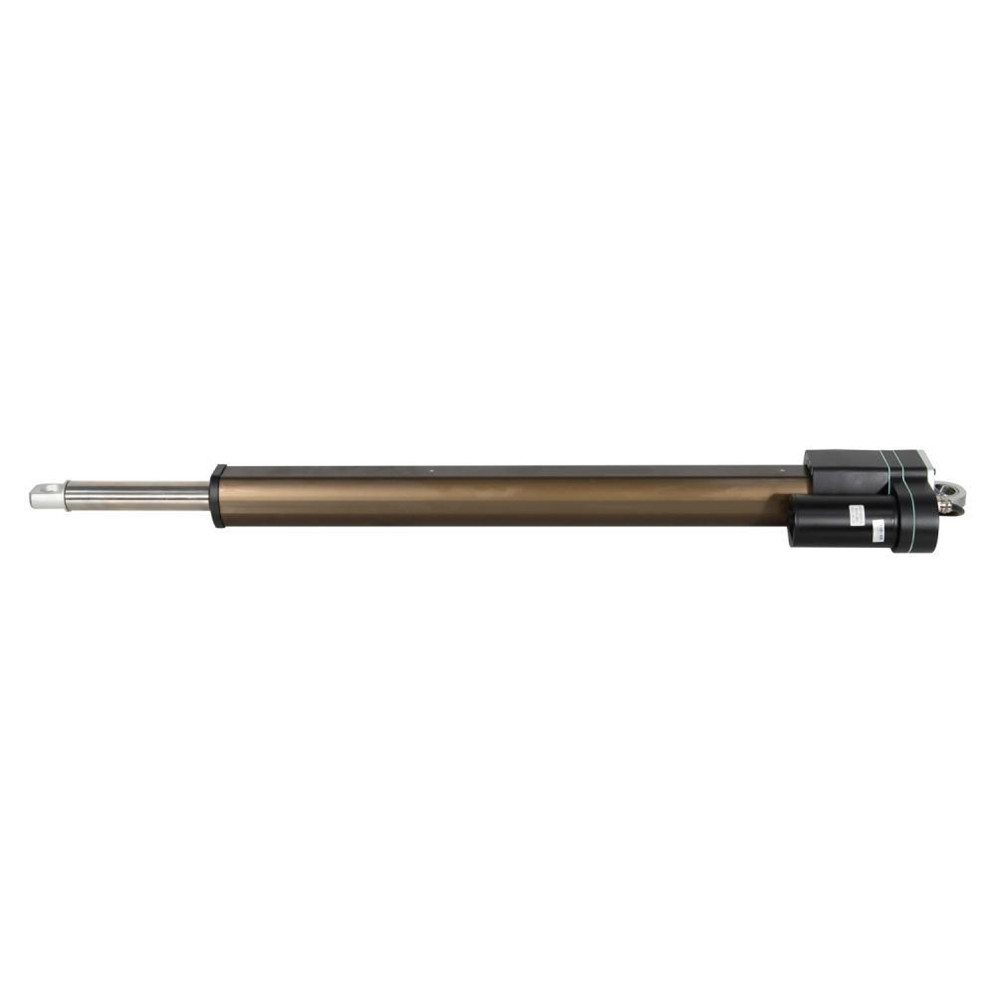

Solar Tracker Linear Actuator with Position Feedback

Solar Tracker Linear Actuator with Position Feedback Low noise design：dB<50(A); The inspection method is in accordance with DS/EN ISO03746 while linear actuator is unloaded. The UD100 has a maximum dynamic load capacity of 4000kg, which is particularly suitable for very large solar photovoltaic bracket driving equipment Product Parameter Voltage 12/24/36/48 VDC  Max. Load 40,000N (push) Max. Load 70,000N(pull) No- Load Speed 1.4mm/s  Full-Load Speed 1.2mm/s cycle time 0.1 Protection Class IP66 Ambient Temperature  -40℃ ~ +65℃…
