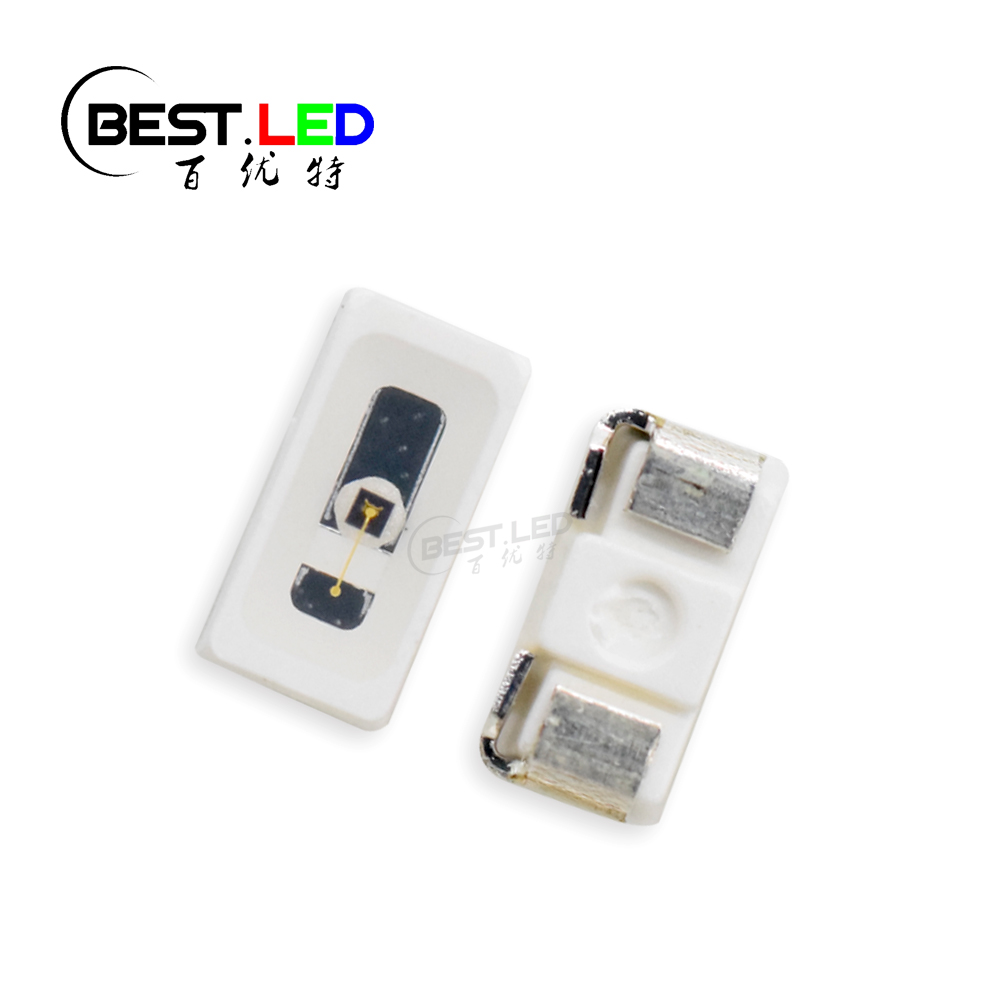

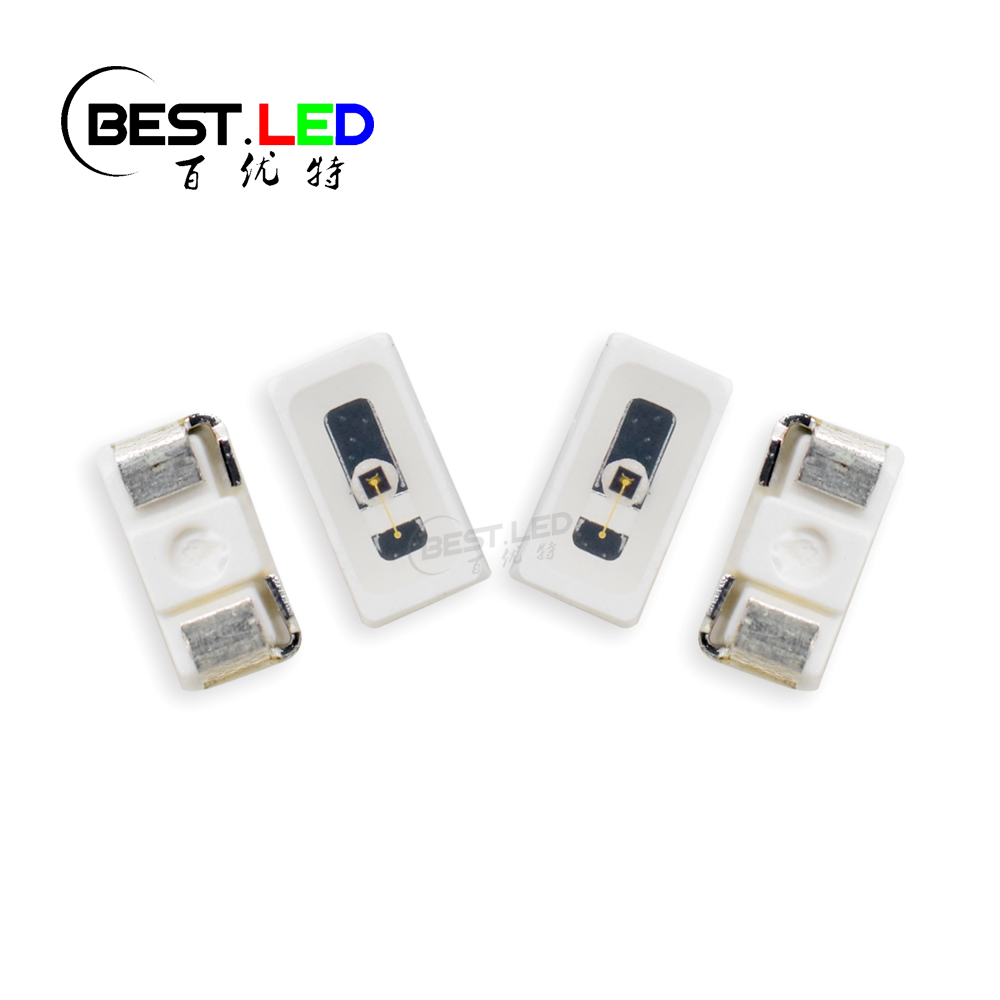

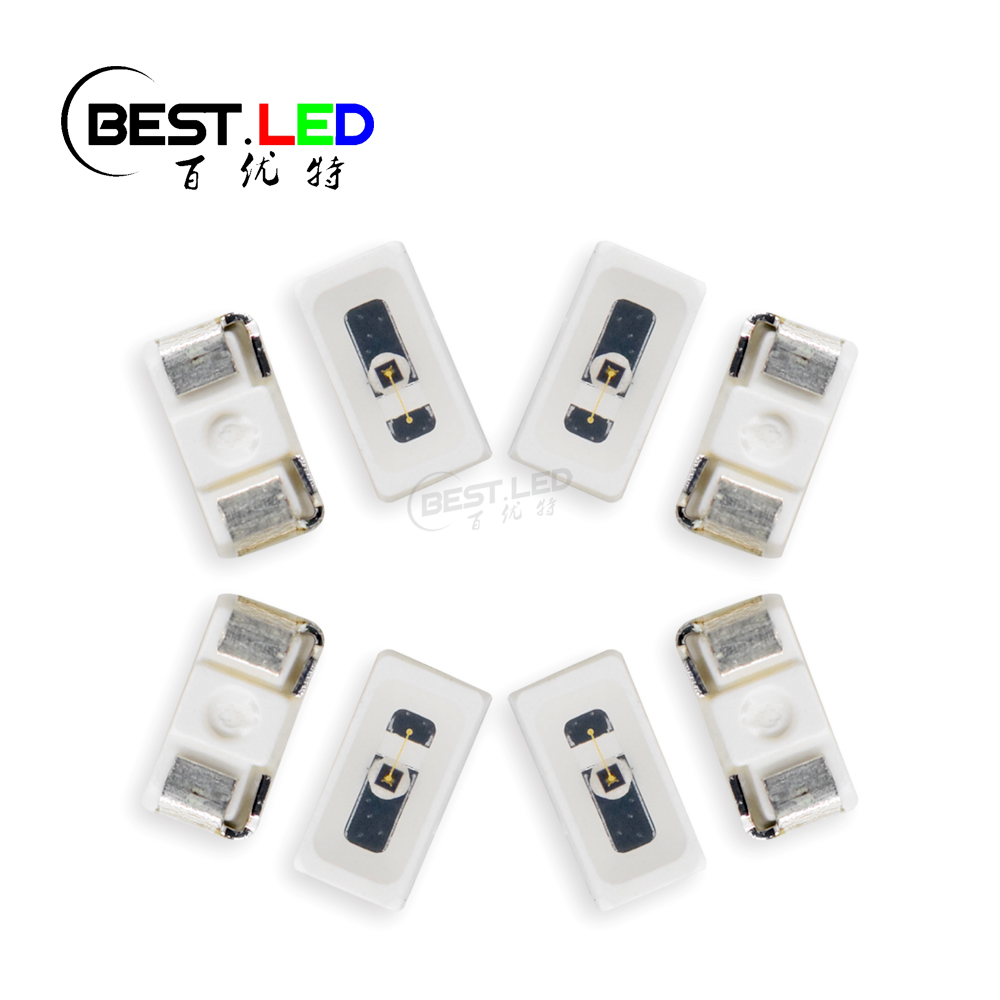

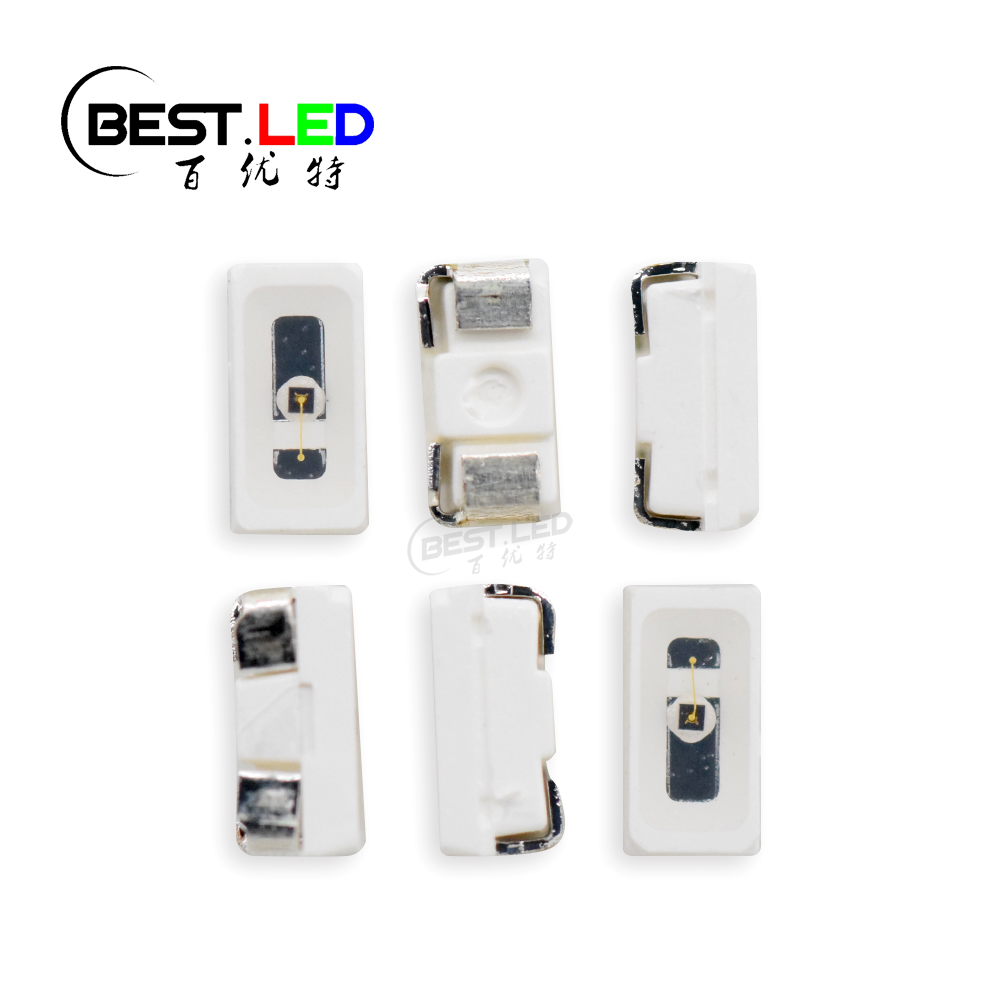

Side Emitting LED IR LED 940nm SMD LED

SMD 3014 LED with 940nm Infrared LED; This 3015IRC-94I12I60 are kind of dual-use SMD LED. The soldering pad is surrounded by SMD LED in a right angle way. When you use the bottom pad to solder LED in your PCB board and connect it with the power source, the LED will be emitted vertically to your PCB board. If you use the side pad to weld, the light will be emitted along the direction of your PCB. So we can adjust it as the application when we use it. On the other hand, 940nm are also good for monitoring project beucase it's good concealment performance. It won't show any brightness even when it's working in the circuit.  Electrical Parameters: Parameter Symbol Rating Unit Forward Current IF 60 mA Forward Voltage V 1.4-1.6V V Luminous…
