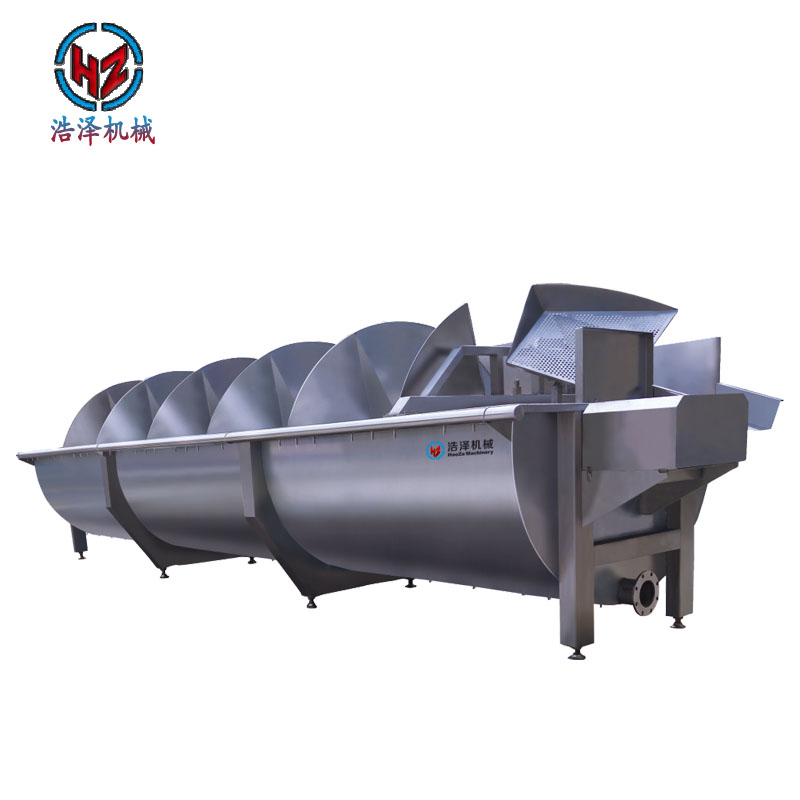

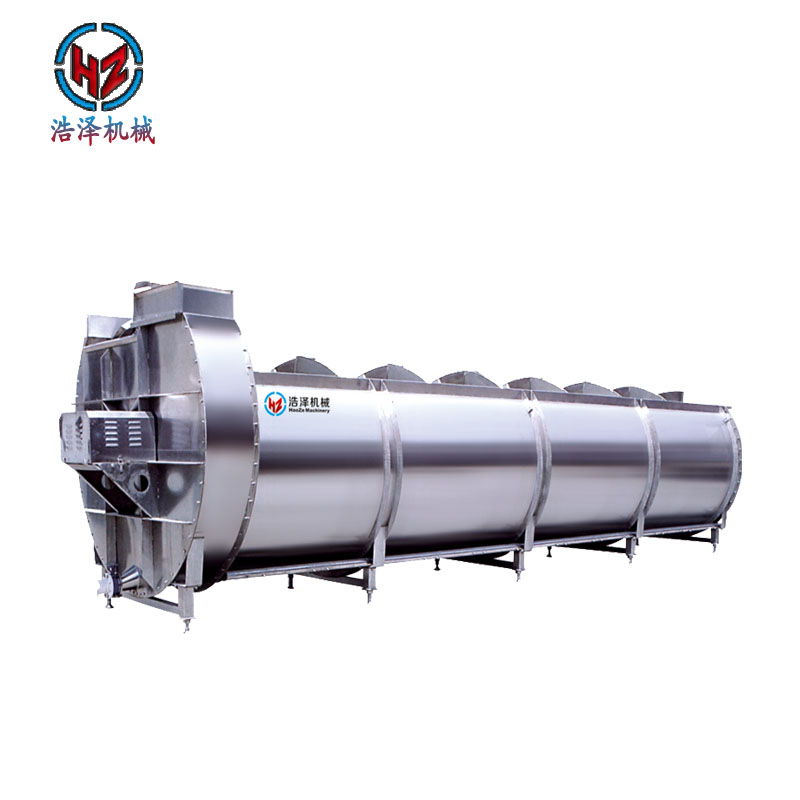

Poultry spiral pre cooler

Spiral pre cooler Quantity: One unit Model: HZ-D3.2-6 Configuration: Stainless steel cylinder body (304 material, thickness 4mm); Stainless steel reinforced rib plate (304 material, thickness 60 × 12); Stainless steel spiral thruster (304 material, thickness 4mm); Automatic chicken feeding system (made of 304 material, with a chicken flipping plate thickness of 3mm); Stainless steel end plate (304 material, thickness 5mm); Blowing system; (Fan brand:); Drive device with deceleration motor; (Gear reducer brand: Guomao, motor brand: SEW); Equipped with connecting chutes, inlet and outlet chutes; The reinforcing ribs of the pool body are made of 10mm stainless steel 304 plate, with a width of 100mm. Full welding is used between the rib plate and the pool body, as well as between the spiral blades The two interfaces of the pre cooler air duct branch adopt quick installation joints, which are easy to clean and replace Parameter: Effective length of 6 meters Capacity: 5m3/M Air duct di…
