PDF05-00A single circuit charging valve

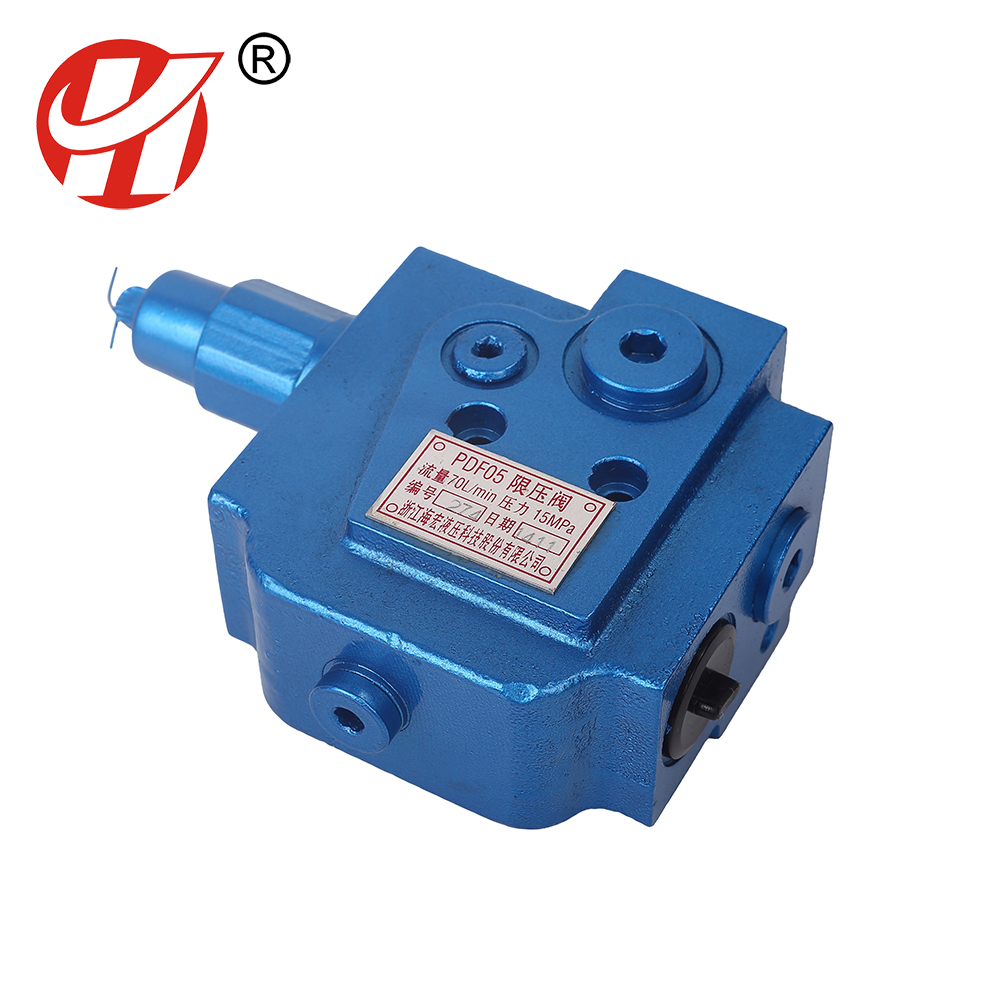

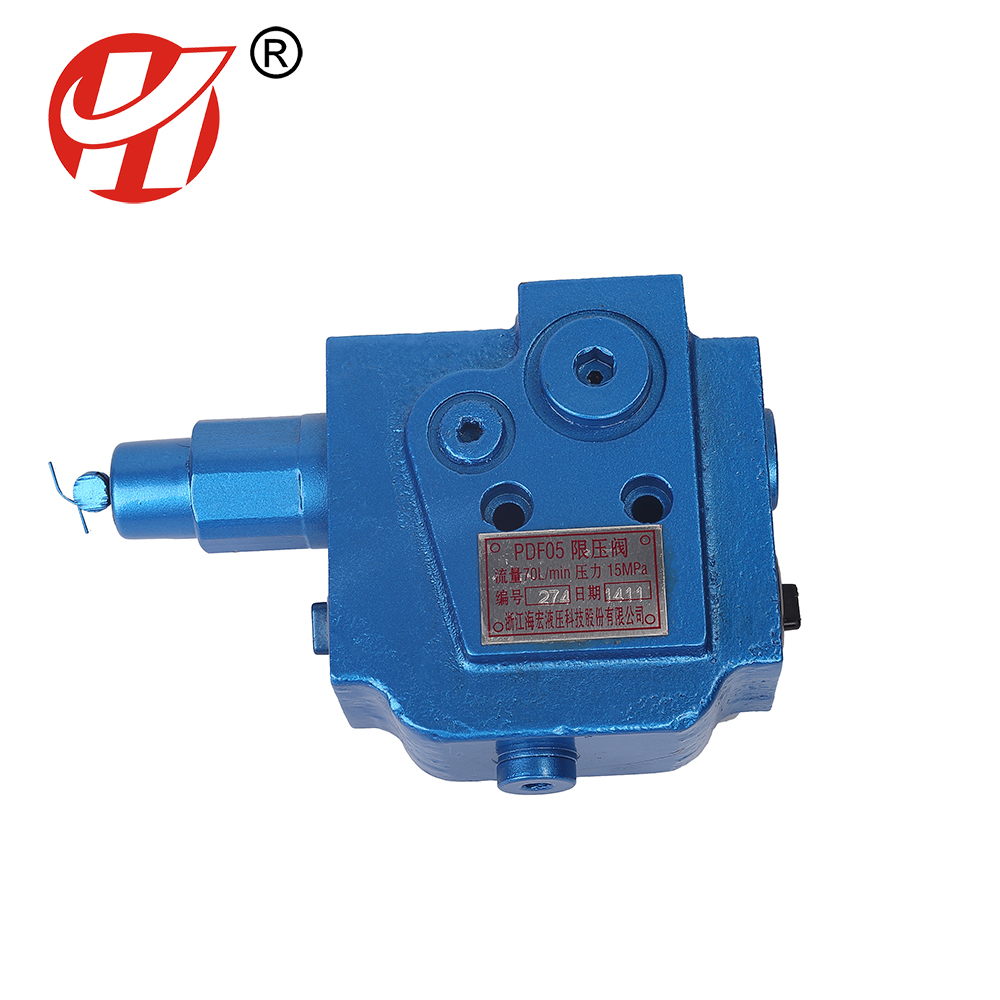

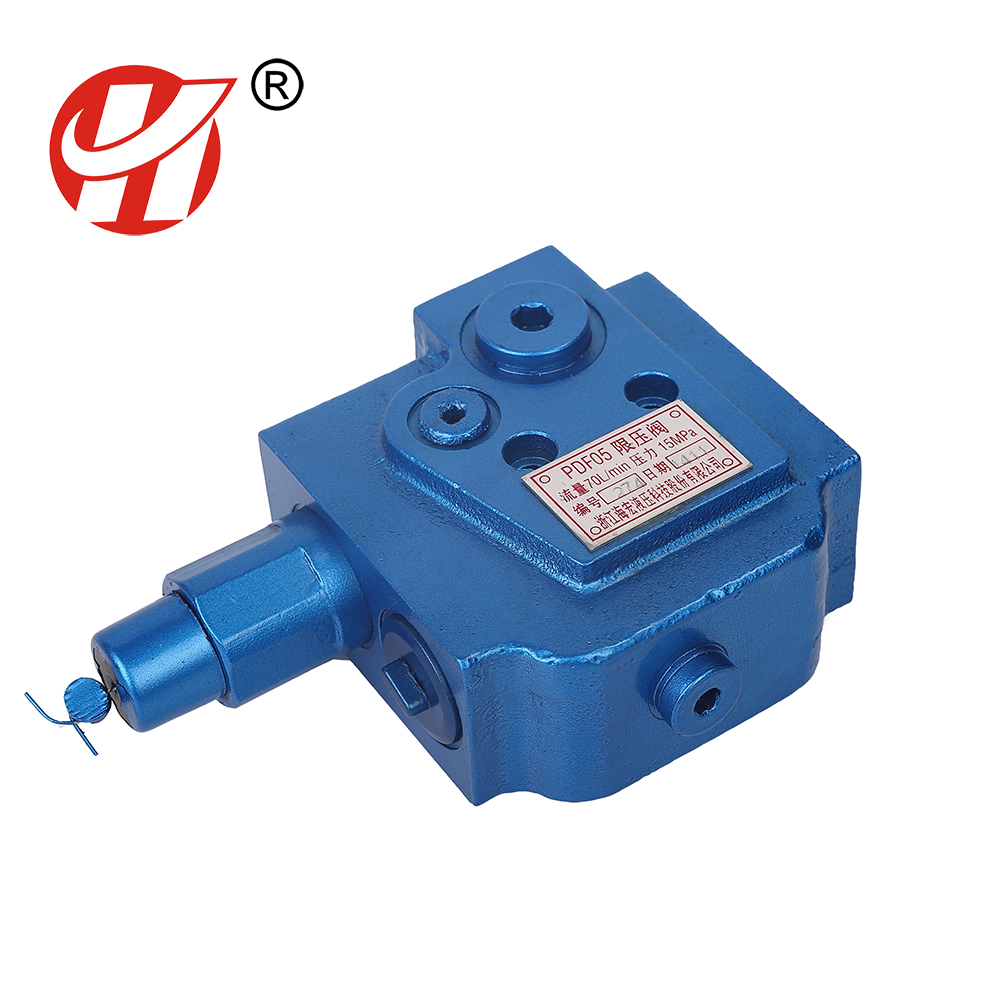

PDF05-00A single circuit charging valve (pressure limiting valve) The valve is installed between pump outlet and overflow valve. It can keep oil pressure in accumulator within the range of opening pressure and cutoff pressure. The switching pressure difference between opening and cutoff is about 20% of the cutoff pressure. The pressure range can be adjusted according to user's needs.  Technical parameter Max. flow at port P: 70L/min Filling speed: 17L/min Max. accumulator pressure： 20MPa Viscosity range: 10-380mm2/s Oil temperature range: -20℃—100℃ Oil cleanliness: The solid particle pollution level of oil and system shall be less than GB/T 14039-2002—/19/16 or NAS 1638 grade 10 Approx. weight: 3.4kg Hydraulic system schematic Installation connection size
