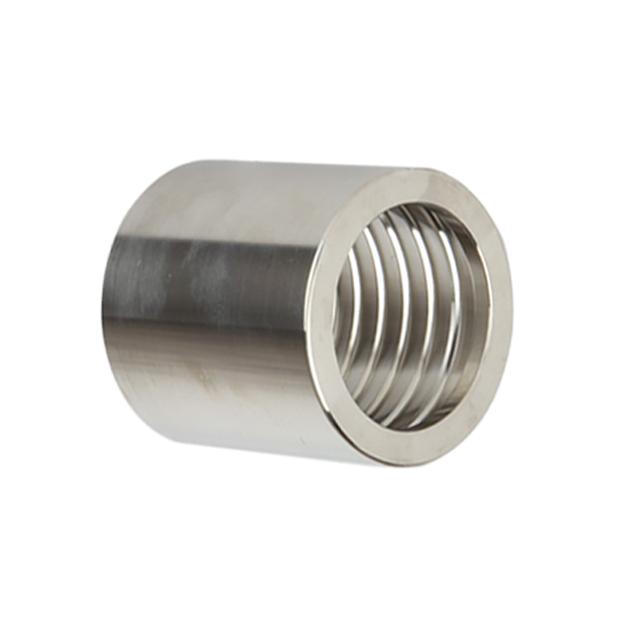

Non Skive Ferrule For Braided Hose

This Non Skive Ferrule is for braided hose .As we all know non skive hose is different from skive hose for its thickness of the outer cover while it is made to assembly. The thicker cover requires different hose sleeves because of the thickness. Please check the fourth number of hose ferrule number while distinguish between skive hose ferrules and non skive hose shells . 0 represents external skive; 1 stands for non skive; 2 means both internal and external skive. So for example, 03310 is non skive hose sleeve and 00621 is skive hose shell. Or to put it simple, if we do NOT want to peel, use 03310 for one and two wire and 004SP for four wire. After figuring out the skive or non skive ferrule, the next step to select the appropriate ferrule to make hose assembly is to match the inner diameter of the hose ferrule to the outer diameter of the hose.This hose ferrule is made of Carbon Steel with Surface Treatment: Cr3+ Specifications:…
