Linear Direct Drive Servo Valve for Test Equipment

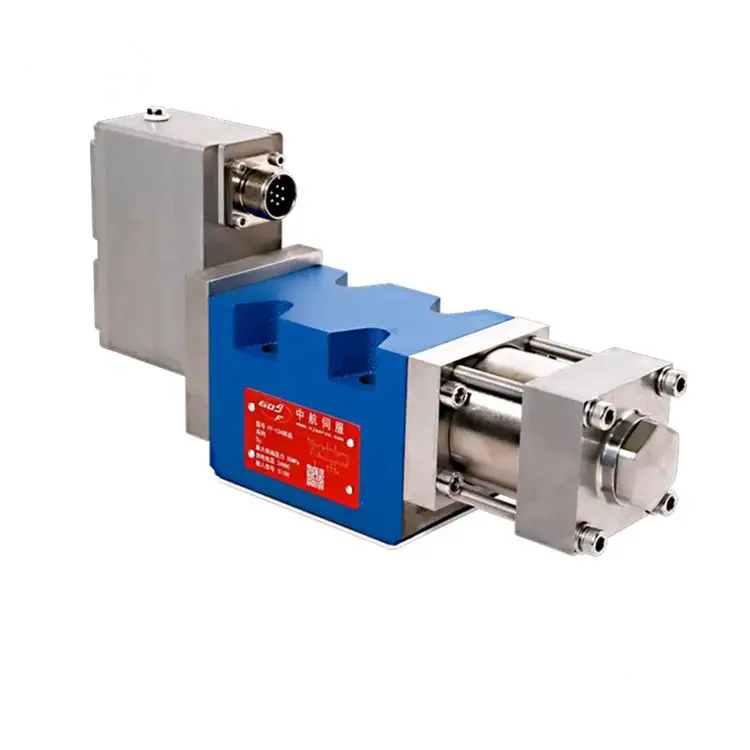

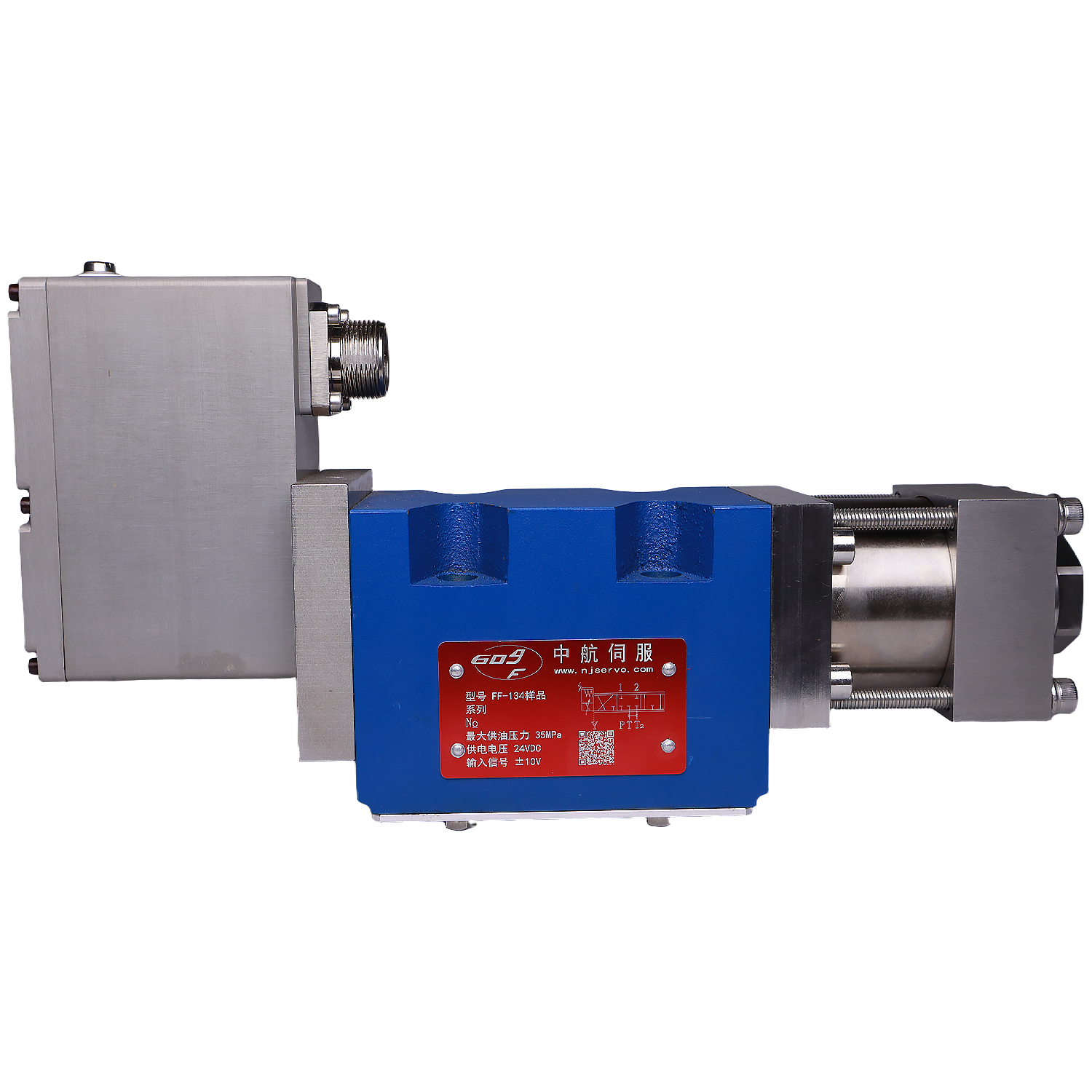

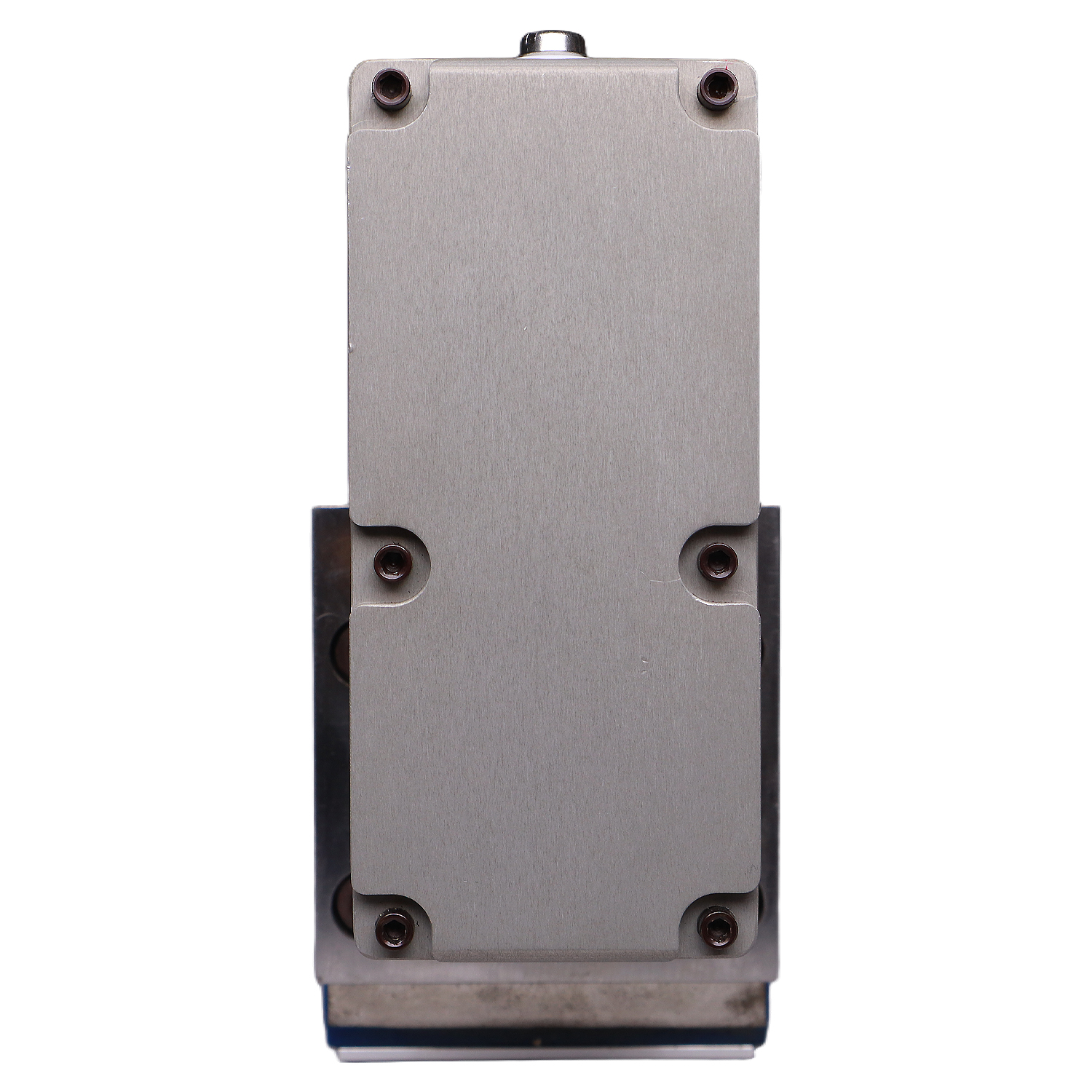

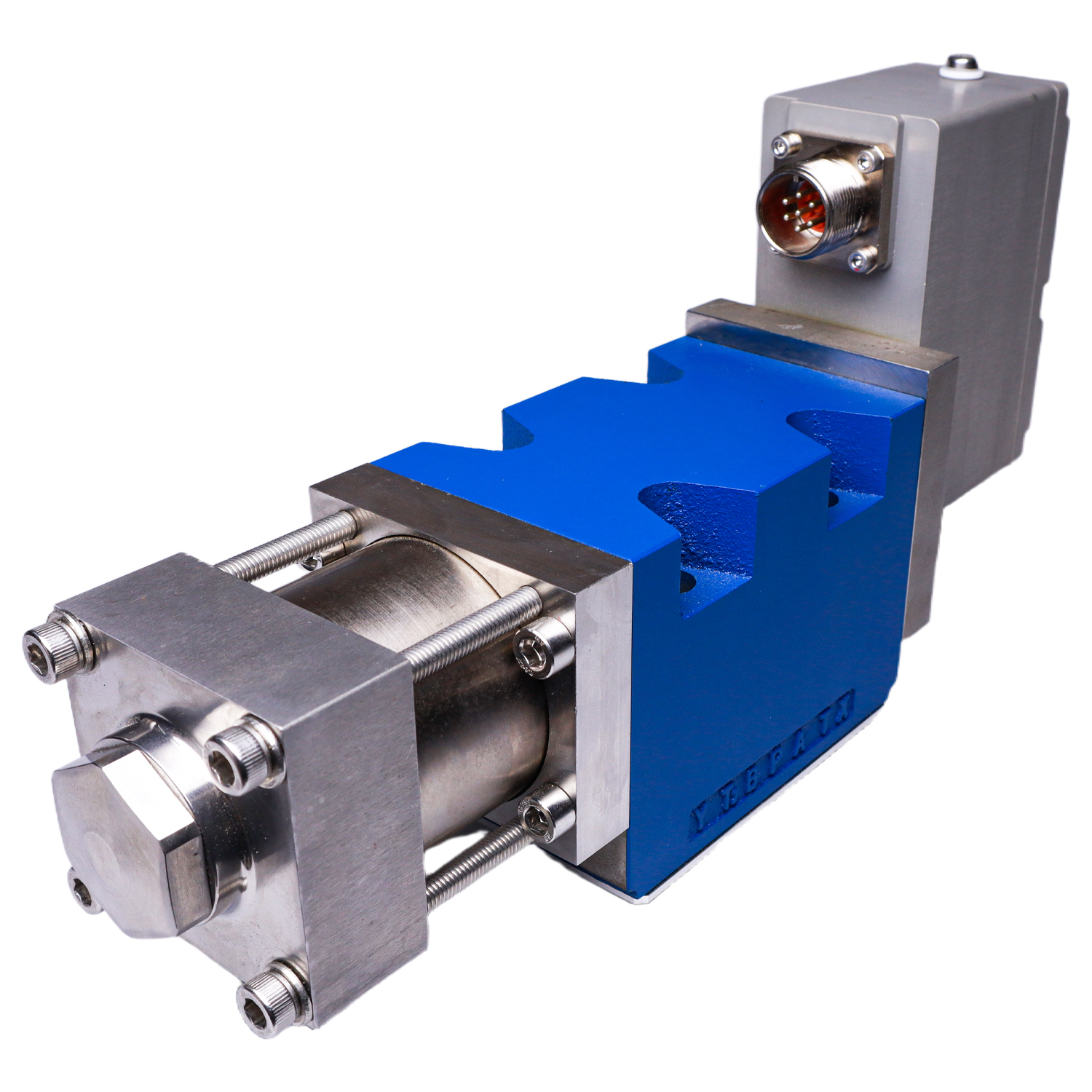

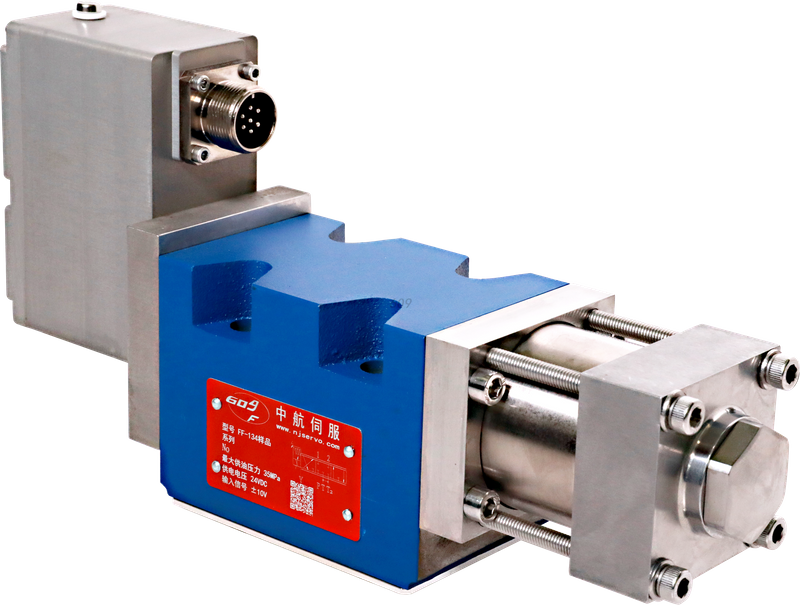

Product Description: The FF-134 series electro-hydraulic servo valve is a linear direct drive flow servo valve with flow rates of 60L/min and 100L/min under a pressure difference of 7MPa. This type of servo valve is directly driven by a linear force motor, without a pilot stage or internal throttling holes. Therefore, it has low leakage, low hydraulic power consumption, strong anti pollution ability, and minimal impact on valve dynamics due to reduced system oil supply pressure. The product uses LVDT valve core position sensors for position closed-loop control, resulting in small hysteresis, high resolution, good repeatability, and high dynamic performance. The product shell is made of stainless steel or cast iron, with high structural strength and high pressure resistance. Suitable for steel metallurgy, testing equipment, etc. We are a professional industrial product supplier. Our main products are servo valves, pulleys, belts,locking assembly ,shaft coupling, etc !  Why…
