Large Size Measuring Instrument

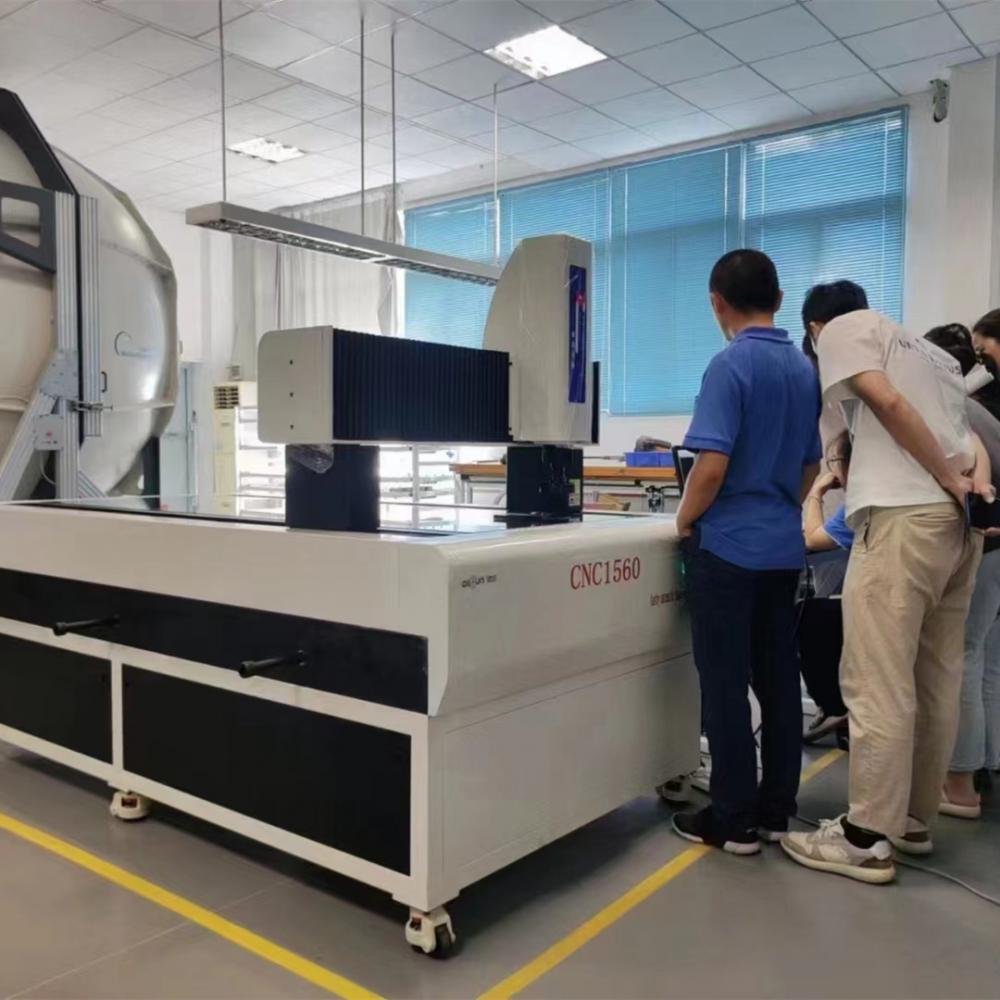

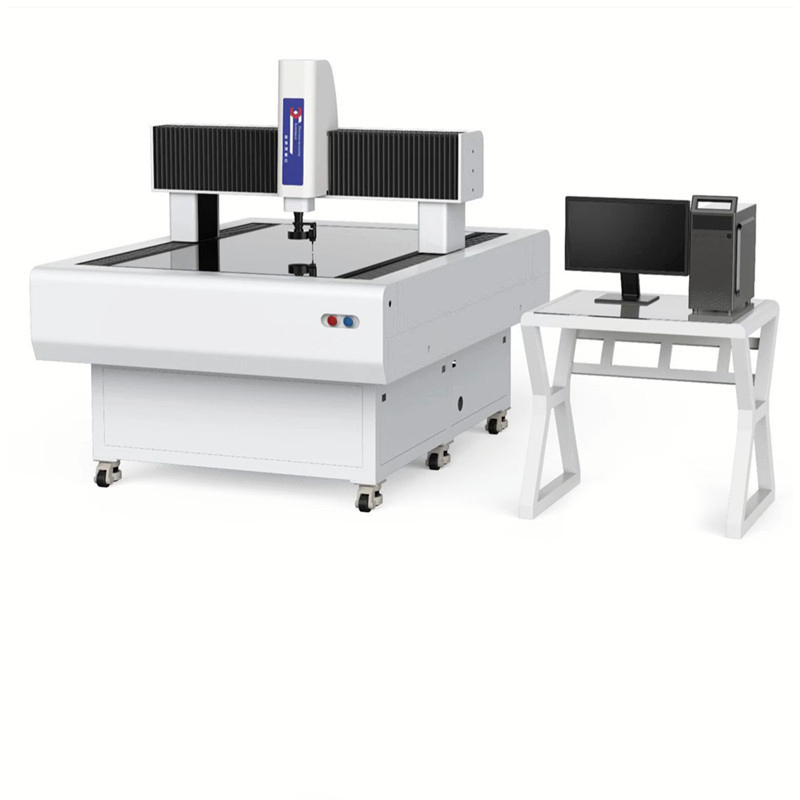

     The gantry image measuring instrument is an automatic image measuring instrument specially designed for customers with general measurement requirements. Domestic image system, motion control system, precise linear guide rail and grating ruler are used to minimize unnecessary equipment provided by customers and meet the requirements of product quality control at the lowest cost. It can realize XYZ three-axis automatic measurement, and supports various accessories such as surface light source, contour light source and rocker, contact probe, automatic zoom lens, etc. It is equipped with 3D-INS-C measurement software in the industry, and has various core functions such as geometric measurement, map navigation, CNC program design, report output, etc.      software system： Programming and automation 1. Tasks can be generated for automatic batch measurement, and automatic and manual interactive operations are supported. 2. The lens can be magn…
