K1 3-way active dual 15

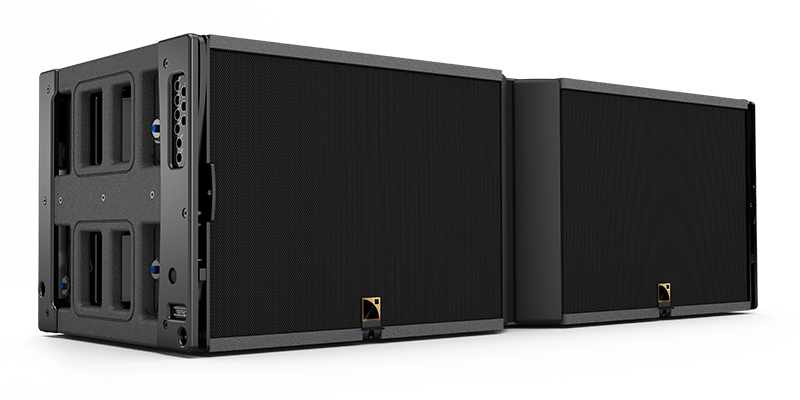

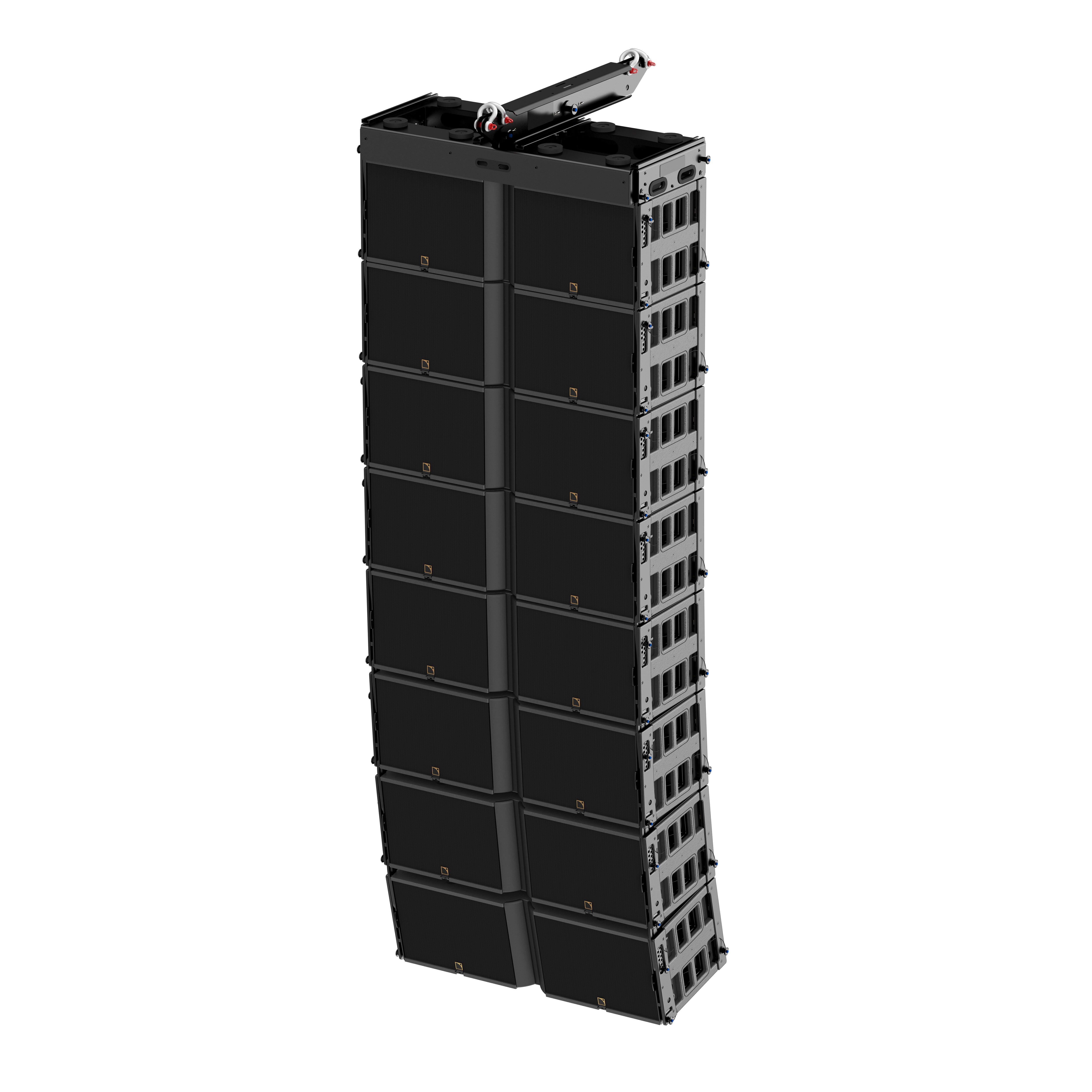

Usable bandwidth (-10 dB):35 Hz – 20 kHz Maximum SPL1:147 dB  Nominal directivity (-6 dB):Horizontal : 110° / 70° symmetric ; 90° asymmetric (35°/55° or 55°/33°) Vertical : depends on the number of elements and array curvature LF: 2 × 15″ cone drivers(2 × 8 Ω) MF: 4 × 6.5″ cone drivers(8 Ω) HF: 3 × 3″ diaphragm compression drivers(16 Ω) Acoustical load: LF: bass-reflex, L-Vents MF: bass-reflex HF: DOSC waveguide, Panflex Connectors:2 x 8-point PA-COM Rigging and handling: Captive 4-points rigging system 2 large side handles Inter-enclosure angles : 0.25, 1, 2, 3, 4, 5, 7.5 or 10° Cabinet:Premium grade Baltic birch plywood Side:Die cast aluminium Rigging components:High grade steel with anti-corrosion coating Finish:Dark grey brown – Pantone 426 C IP:IP55 Weight (net):56 kg Size:438mm×520mm×1342mm K1-SB Dual 15 inch Linear Array Bass Speakers The system should incl…
