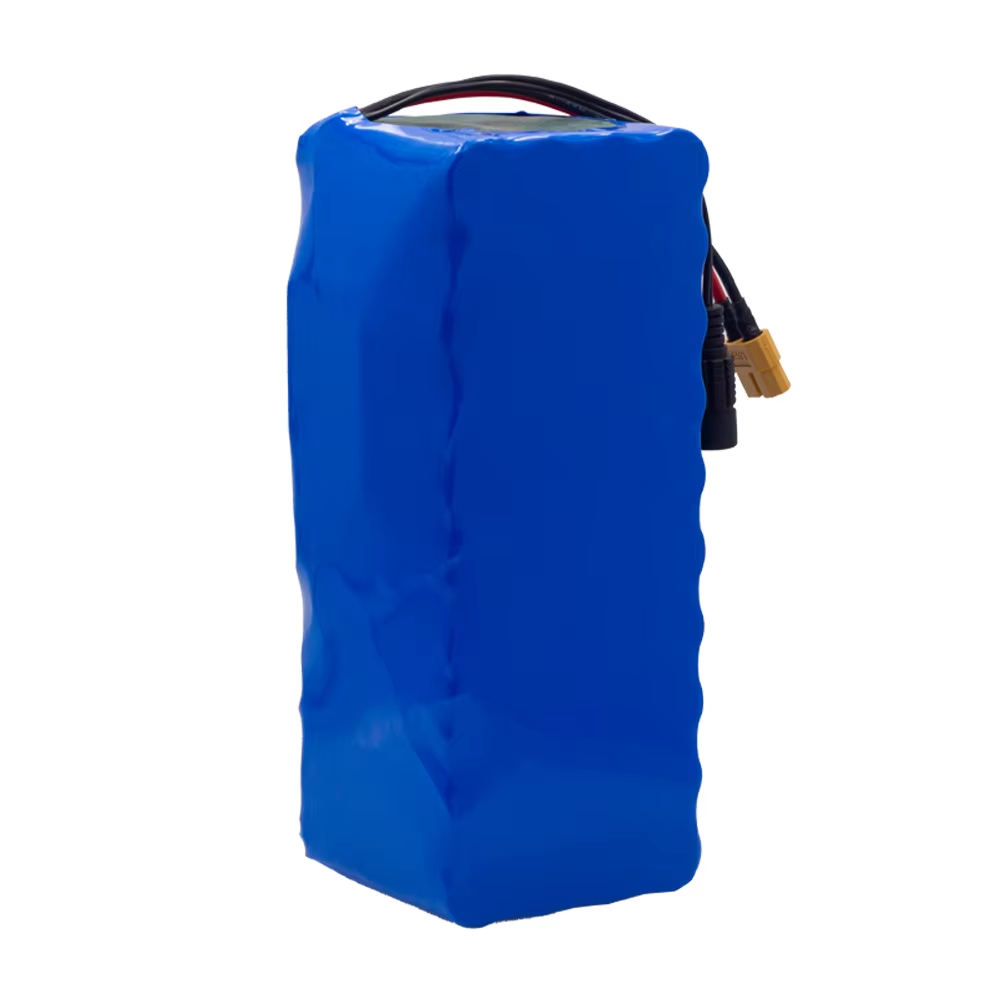

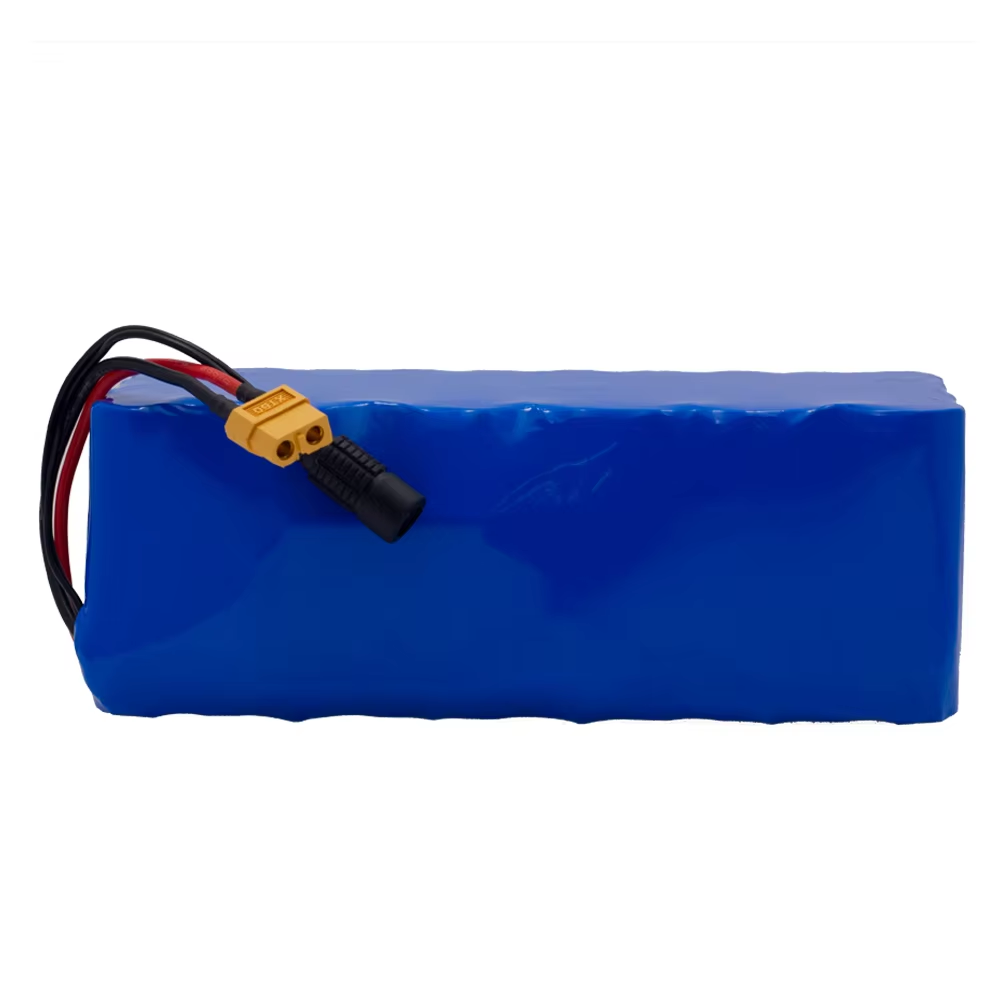

ION 36V 11AH-17.5AH ebike Electric scooter power battery

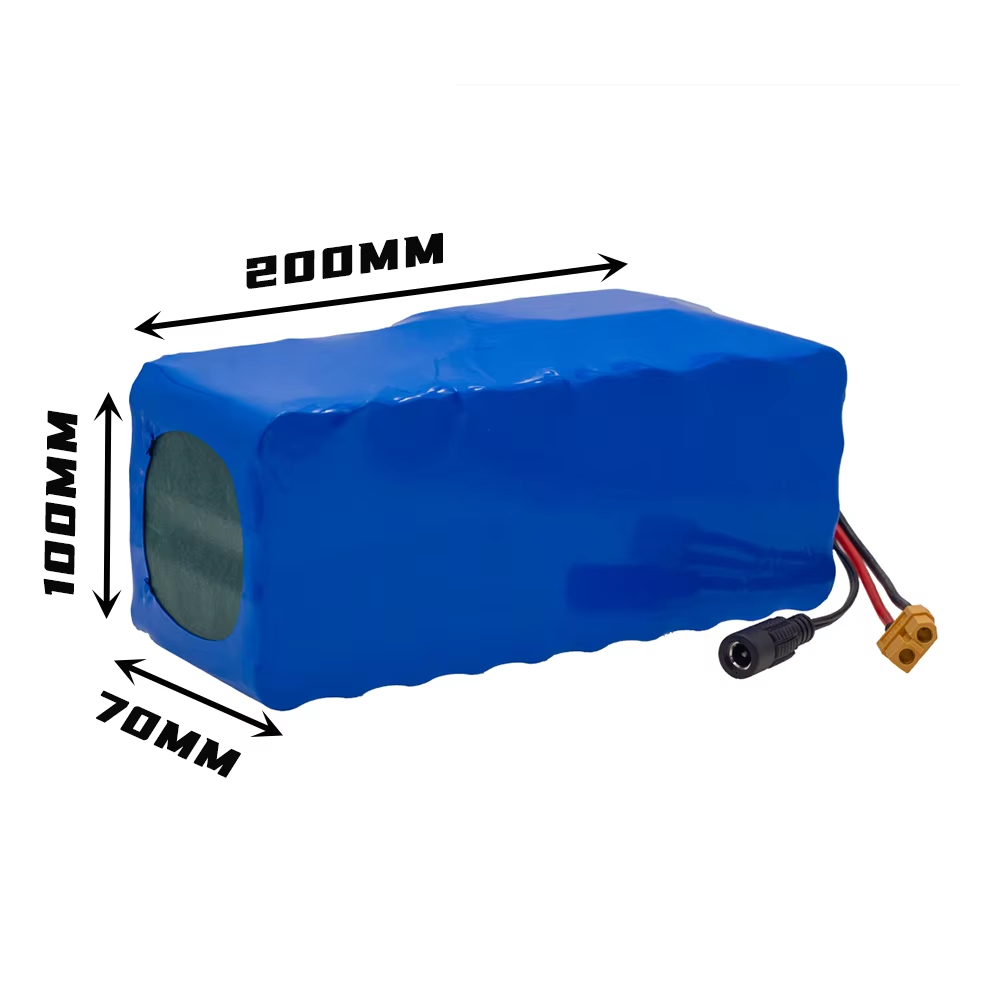

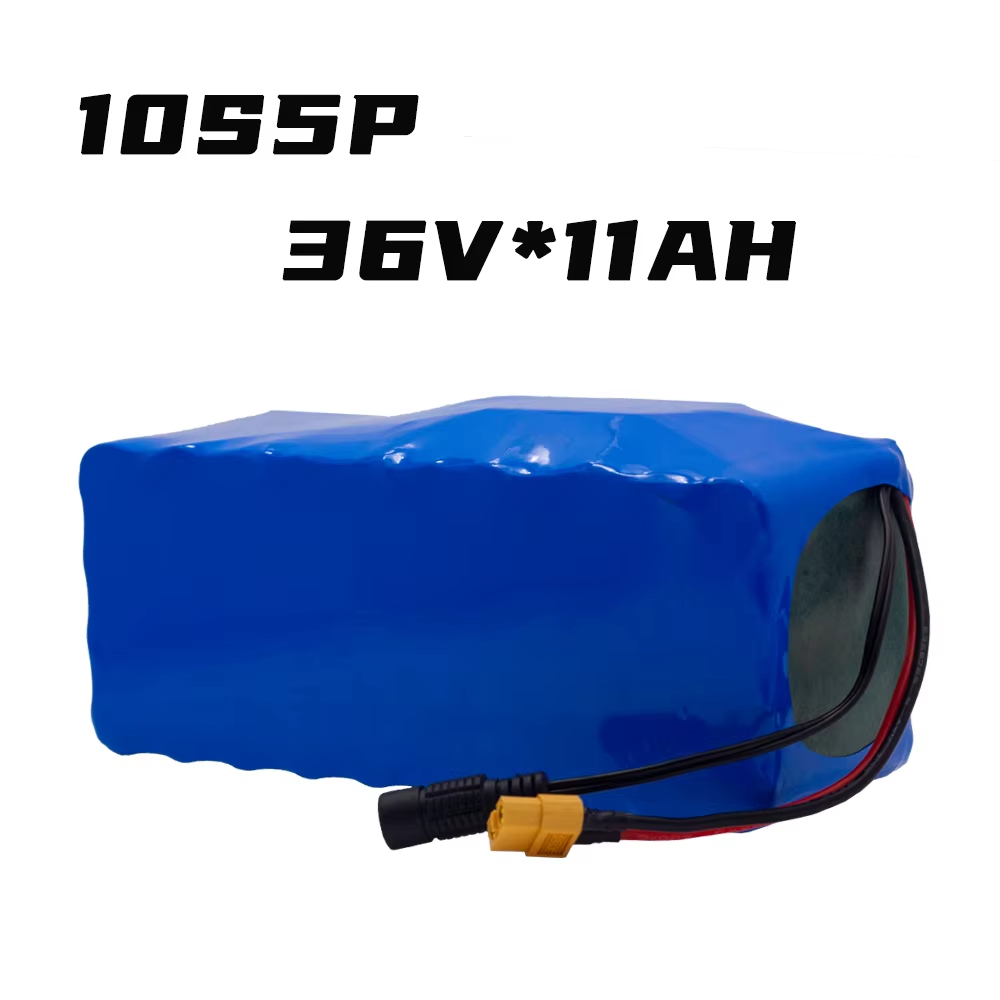

Product Description   Brand Name Phenyee Model Number 10S5P Electric Energy 750 Wh Battery Size 18650 Place of Origin Guangdong, China Weight 3KG The charging ratio 42V The discharge rate 28V Application Electronic equipment Package Individual package Business type manufacturer 36V lithium battery pack Battery parameters: Battery model: 36v Rated capacity (AH): 11AH 13AH 14.5AH 16AH 17.5AH Rated voltage (V): 36 V Technical description: 3.7 V / 18650 cells Cell combination: 4-parallel 10-series Battery size: 200*100*70MM Number of cells (parallel*series): 50 pc. Discharge voltage (V): 27 +/- 1 V Charging voltage (V): 42 V Rated discharge current (A): 30A Instantaneous maximum discharge current (A): 30A Maximum continuous discharge current (A): 15A Charging mode: CC / CV Standard charging current (A): 2A Charging time under standard charging current: 4 hours Maximum continuous current charge (A): 5A With current fast charging charging time: 2 hours Temperature range: 0-45°c &n…
