H Beam Flange Straightening I Beam Flange Straightening

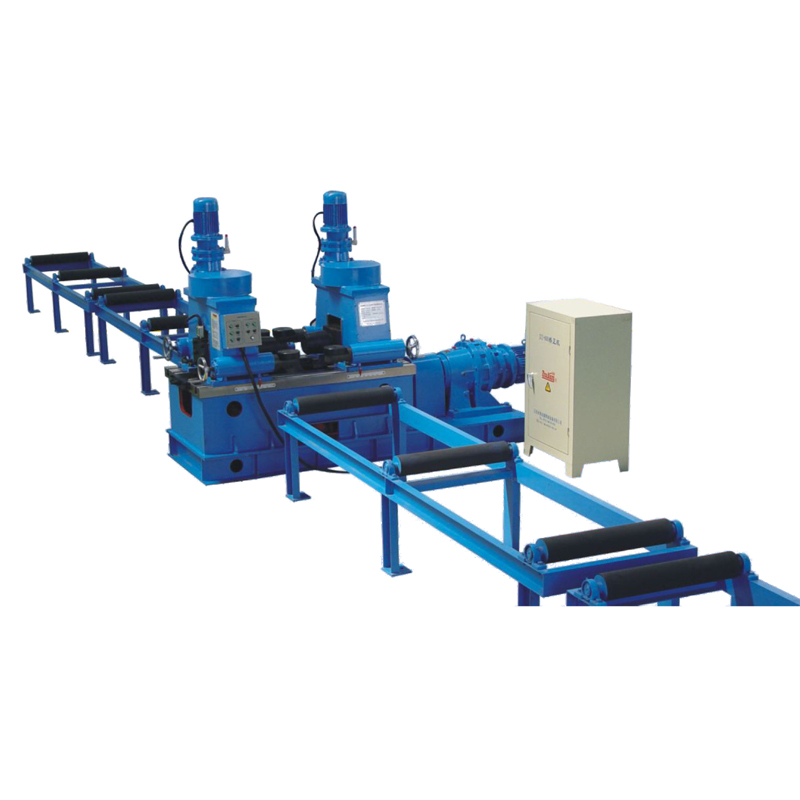

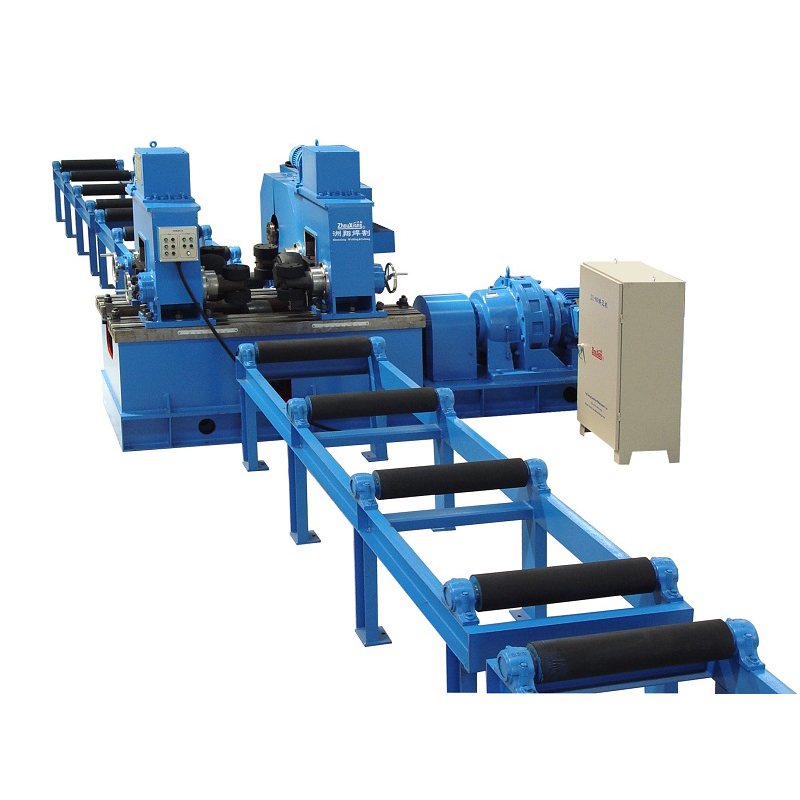

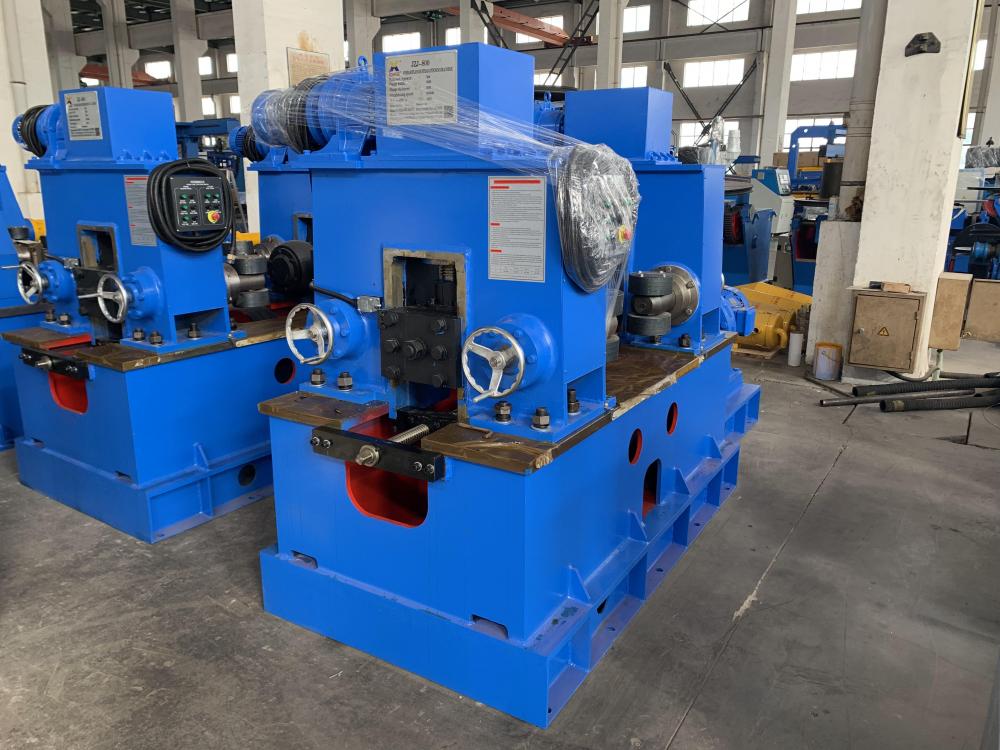

H-beam Flange Straightening Machine H-beam Flange Straightening Machine Structure principle:       H beam flange plate straightening machine working principle : two upper straightening roller press two side edge of the flange plate, one bottom roller support the center of the flange plate , control the upper rollers to press the deformed flange plate that reach to line position.      H Beam flange plate straightening machine is composed of main machine, roller conveyor and electrical control system. The H beam straightening  machine is composed of base bed, upper frame(upper straightening roller mechanism, web plate guiding device, H beam transmission mechanism).     The base bed、the upper machine frame and input/output transmission tables are welded by plate and channel section steel, and then do the process of welded stress relief.     Upper straightening roller is the main part for doin…
