Frequency 750MHz 862MHZ 1GHz optional CATV amplifier

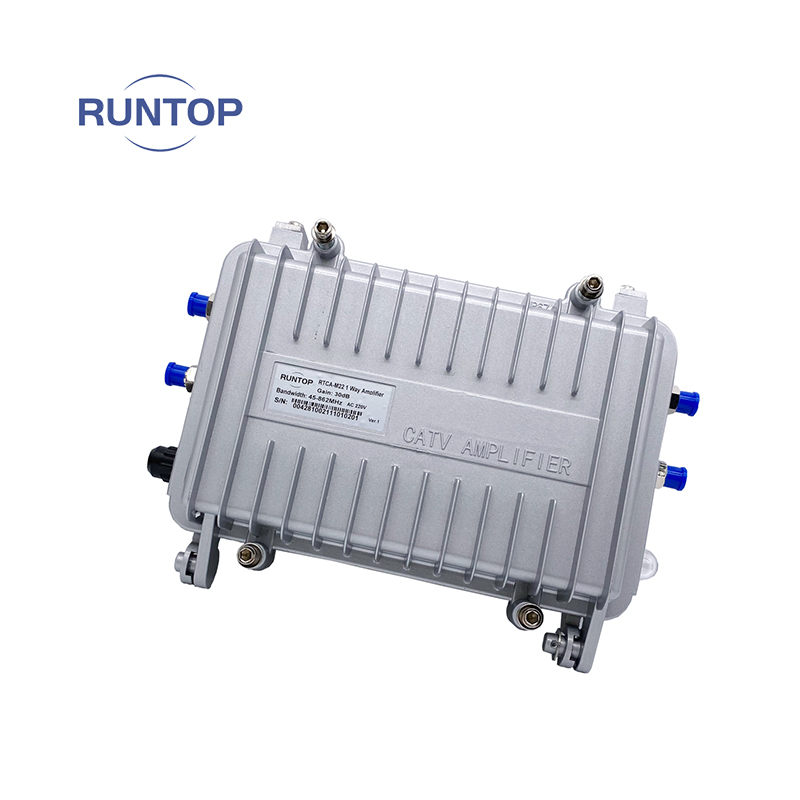

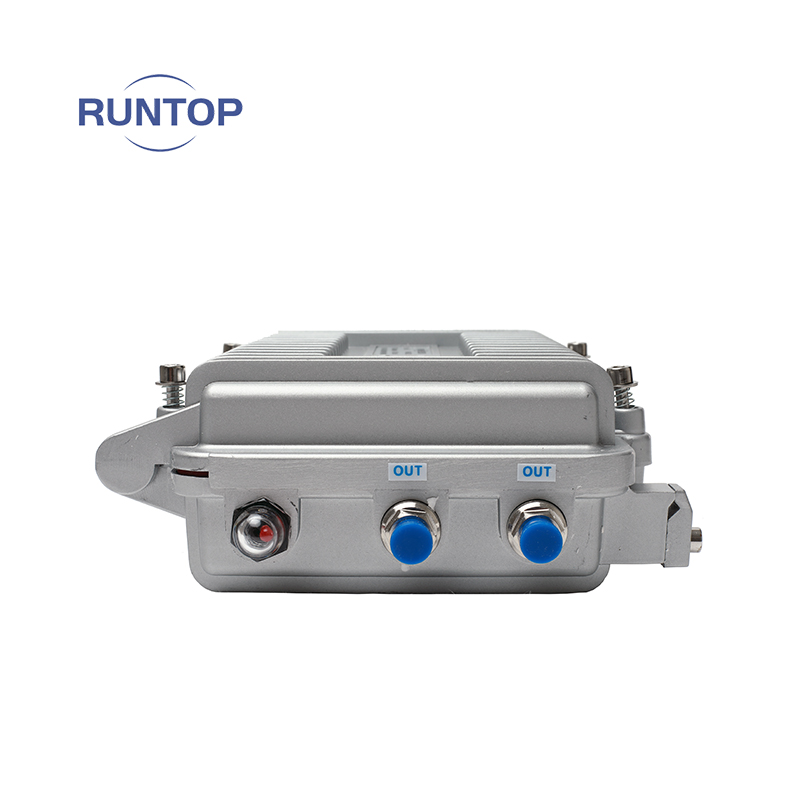

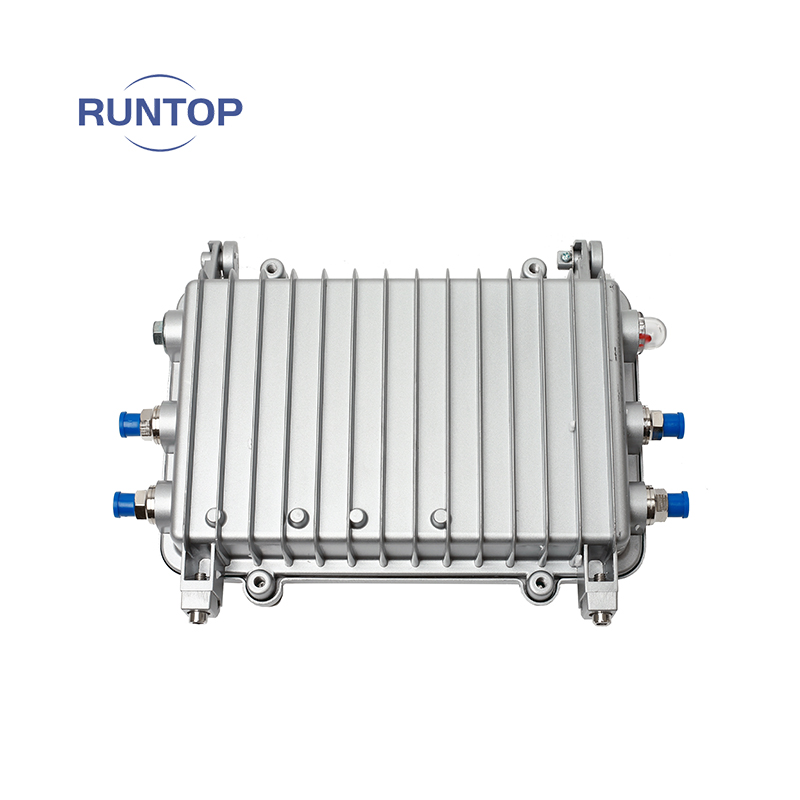

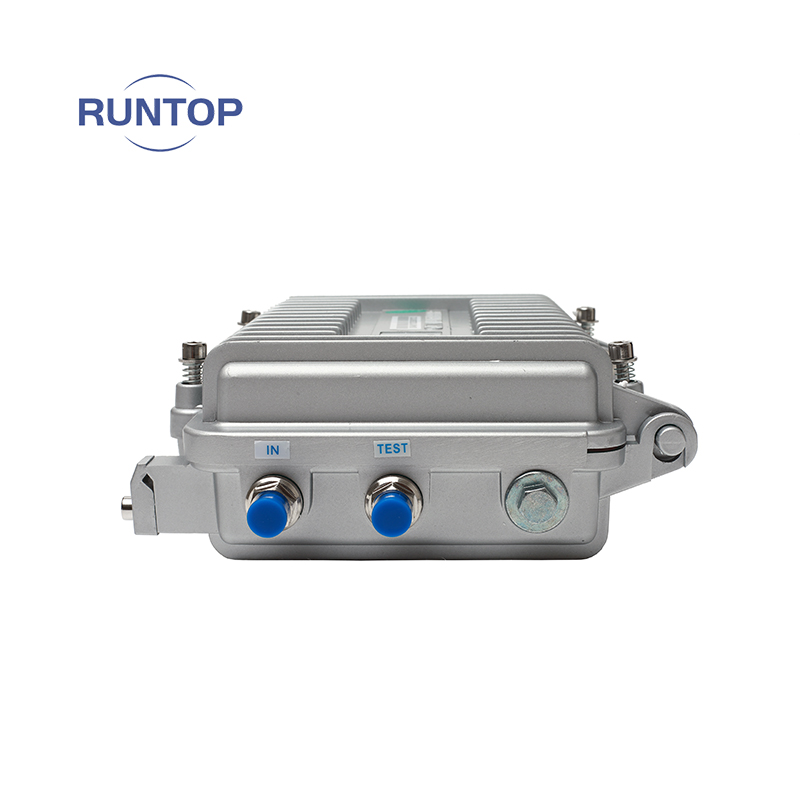

Frequency 750MHz 862MHZ 1GHz optional CATV amplifier CATV trunk amplifier (frequency@ 750MHz, 862MHZ, 1GHz are optional) has single channel signal input and 32dB single channel working gain. There are three output modes: single channel, branch or distribution. This product is not only suitable for HFC network, but also  for traditional coaxial cable network. The working voltage has ~ 220 V and ~ 60 V. When ~ 60V voltage is supplied, it can be fed by cable, and the input and output ports can feed to adjacent amplifiers. The amplifier includes RF amplifier part and power supply part. The outdoor trunk amplifier shell adopts waterproof cast aluminum shell, which is suitable for field work.   CATV Line Amplifier Functional Features 45 ～ 1002MHZ unidirectional platform The input attenuation is fixed or adjustable compatibility - 20dB directional coupling test mode The input, output and branch / distribution ports can be fed Maximum 8 ampere over current Technical Spe…
