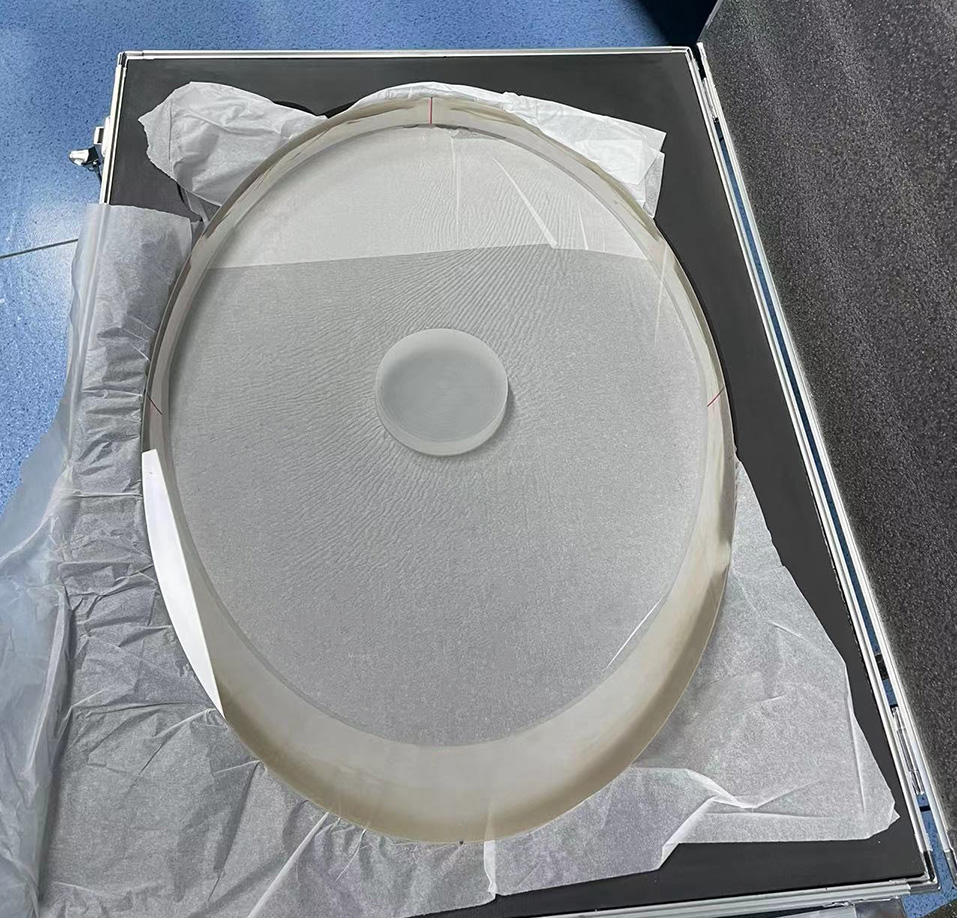

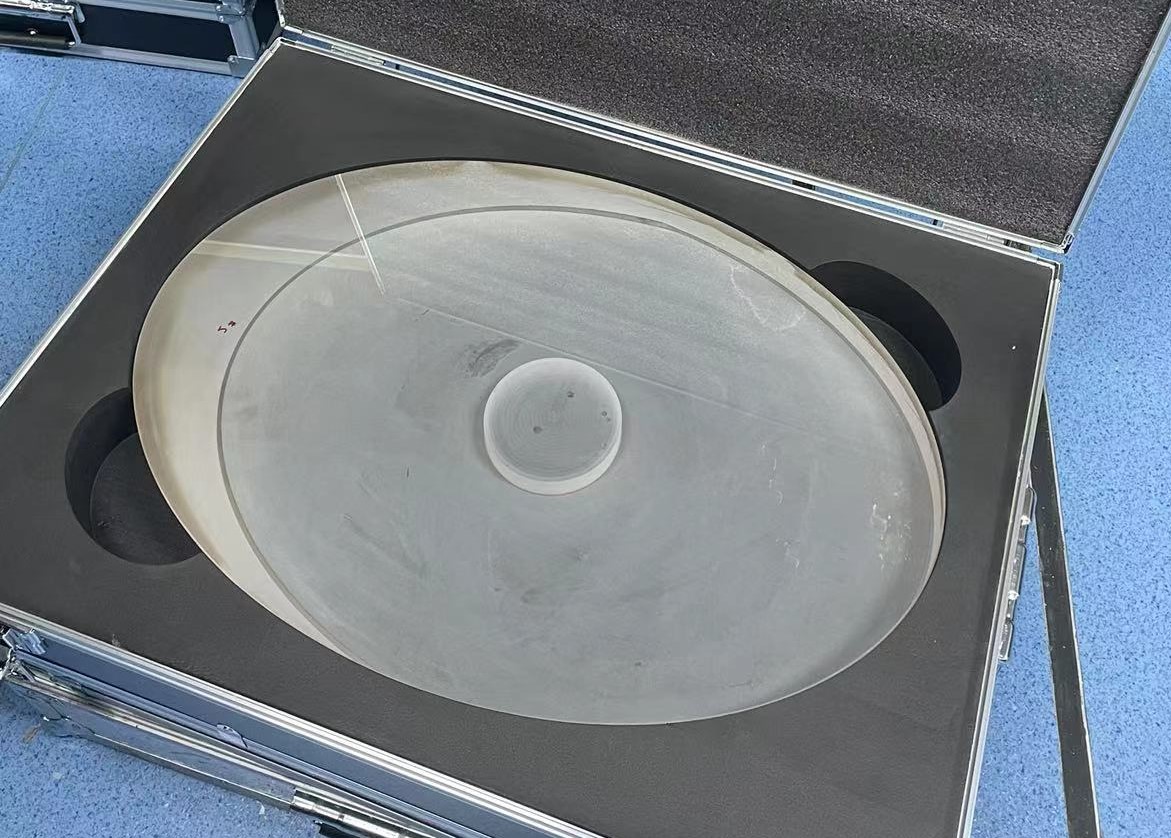

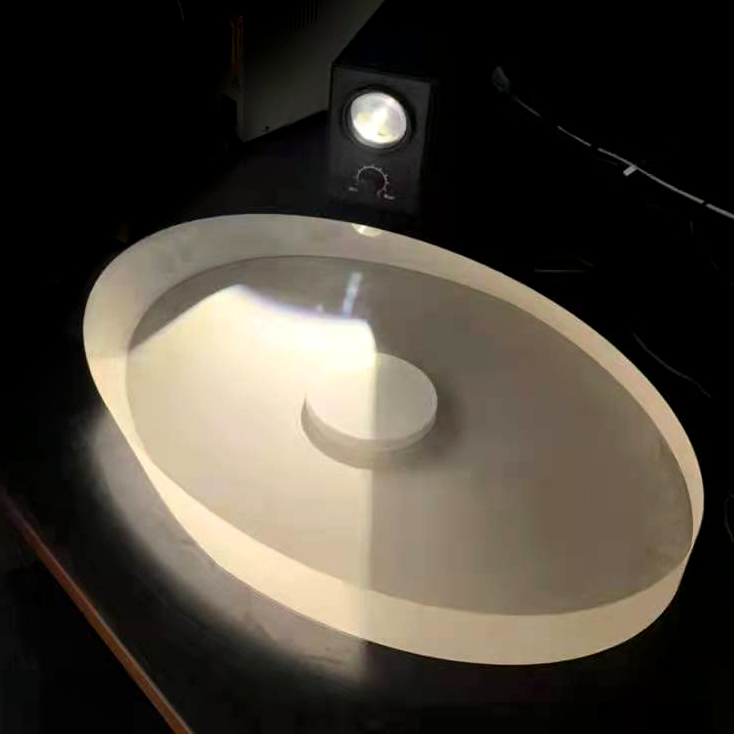

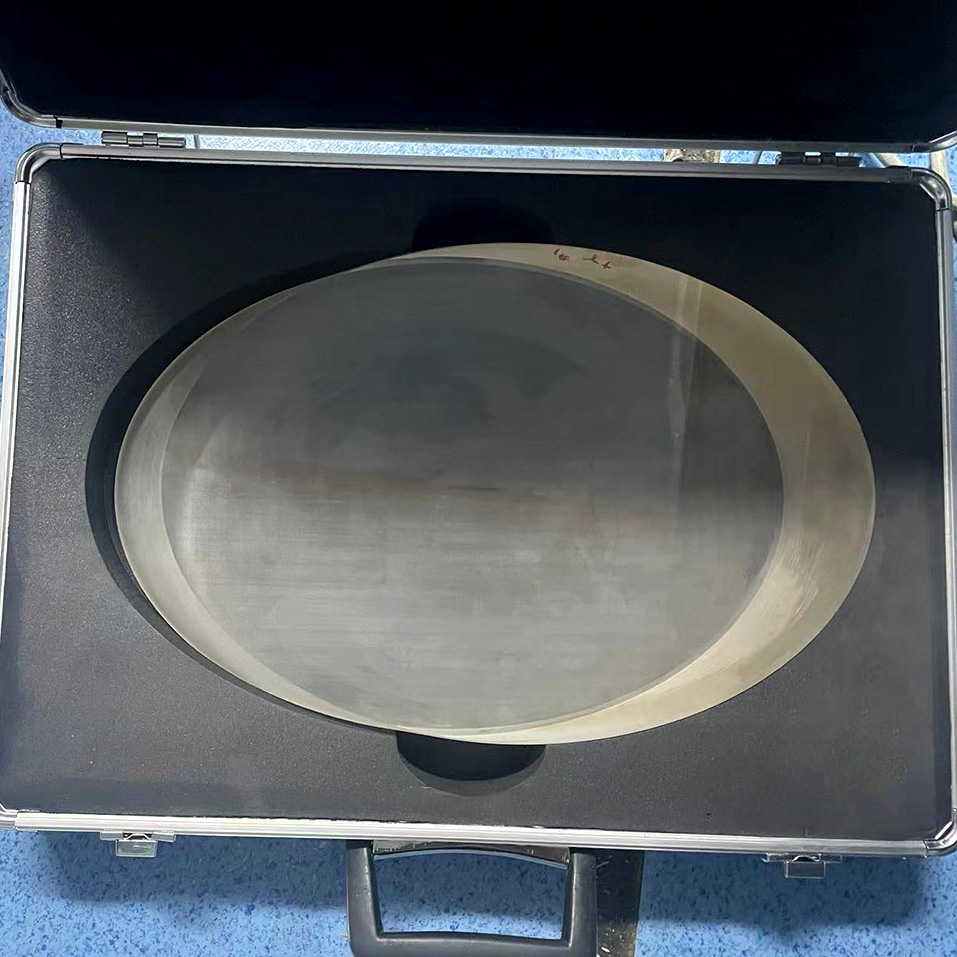

Elliptical Flat

Elliptical flat mirror is a specialized optical component designed for precision reflection applications. Its unique shape allows it to focus light efficiently, making it an essential tool in various fields, including imaging system,telescope system, laser system and optical instruments for scientific research. MG-Optics manufactures custom high-precision telescope elliptical flats in a range of sizes from 50mm to 600mm. Materials include fused silica JGS2, quartz, ULE, Zerodur, K9, N-BK7. RMS can reach 0.04 wavelength or better.   Product Specification Shape Elliptical flat Material Fused silica,JGS2,low expansion material,ULE, zerodur Diameter minor axis range 50mm~600mm PV ≤0.167λ RMS ≤0.04λ Bevel 1mm x 1mm/3mmx 1mm Coating UV-Enhanced Aluminum+SiO2/No coating Edges blackened  Edges blackened or not based on customer requirement     Product Properties For the elliptical flat…
