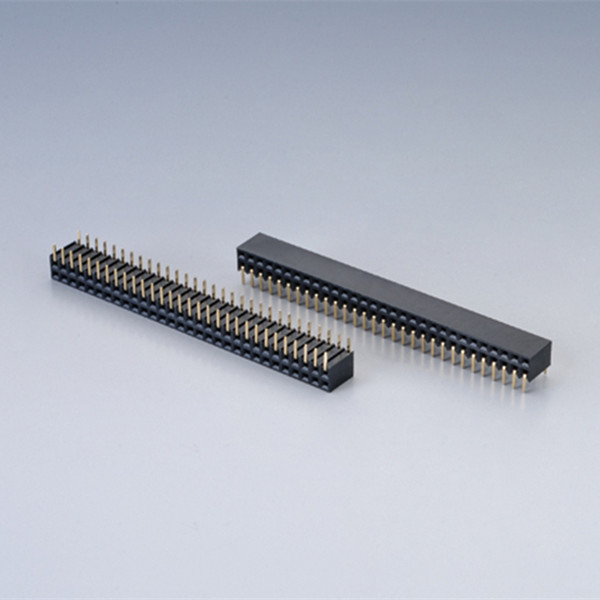

Dual-sided Edge-socket PCB Board Female connectors

Dual-sided Edge-socket PCB Board Female connectors 2.54mm Pitch Female Connector - 2.54x8.1 Dual Side Plugs Specification Description: Model No.: Pitch 2.54mm Female 2.54x8.1 Double Side Inserts Plastic height: 8.1mm Pin position: 2*2P～2*40P Material: Terminal material: phosphorus copper Plating of terminals: gold plated on nickel base Plastic material: PBT,UL94V-0/PA6T,UL94V-0 Plastic colour: black   Electrical Characteristics: Rated current: 3.0 Amp Contact impedance: 20mΩ Max Insulation Resistance: 5000MΩ Min @ 500V DC Withstanding Voltage: 1000V AC/1min  Mechanical Characteristics: Operating temperature: -40°C to +105°C Welding temperature (PBT material): 230+/-5°C, time: 5+/-0.5 sec. Soldering temperature (PA6T material): 260+/-5°C, time: 5+/-0.5 sec. Solderability (PBT material): more than 90% of soldered area @ Temperature: 230+/-5°C, Time: 3+/-0.5sec Tin-on-tin (PA6T): 90% tin-on-tin @ Temp: 230+/-5°C, Time: 3+/-0.5 sec. The 2.54…
