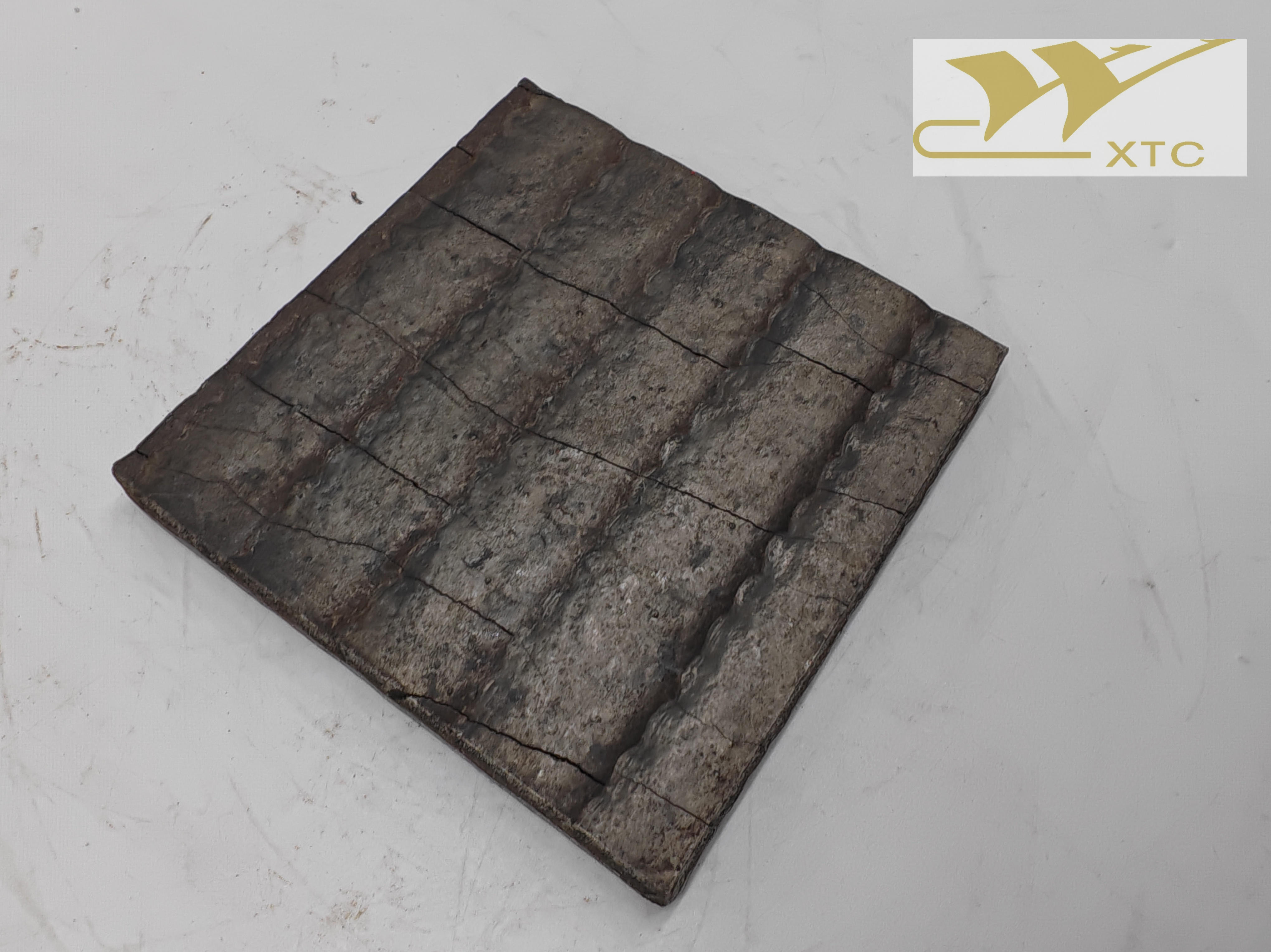

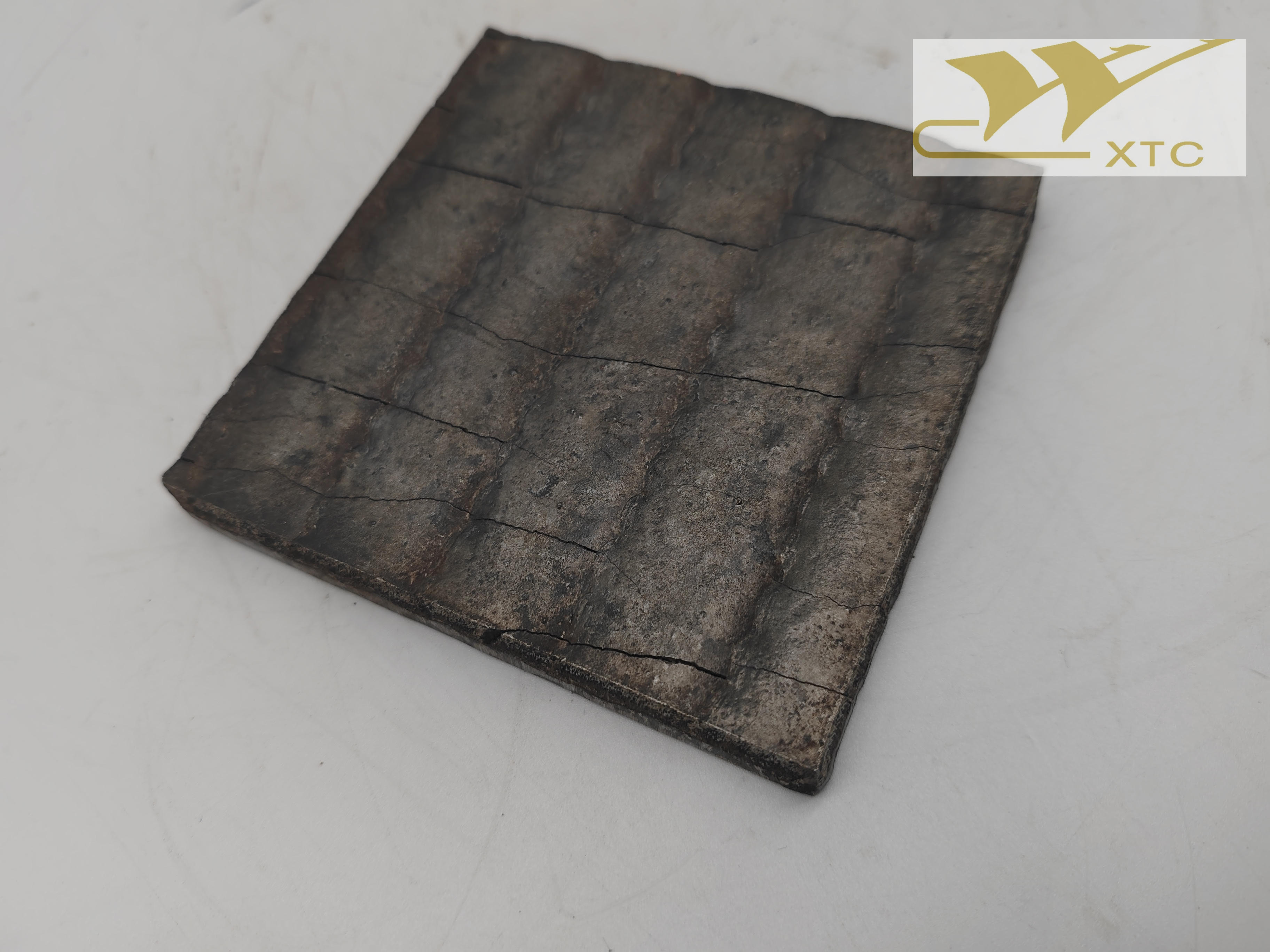

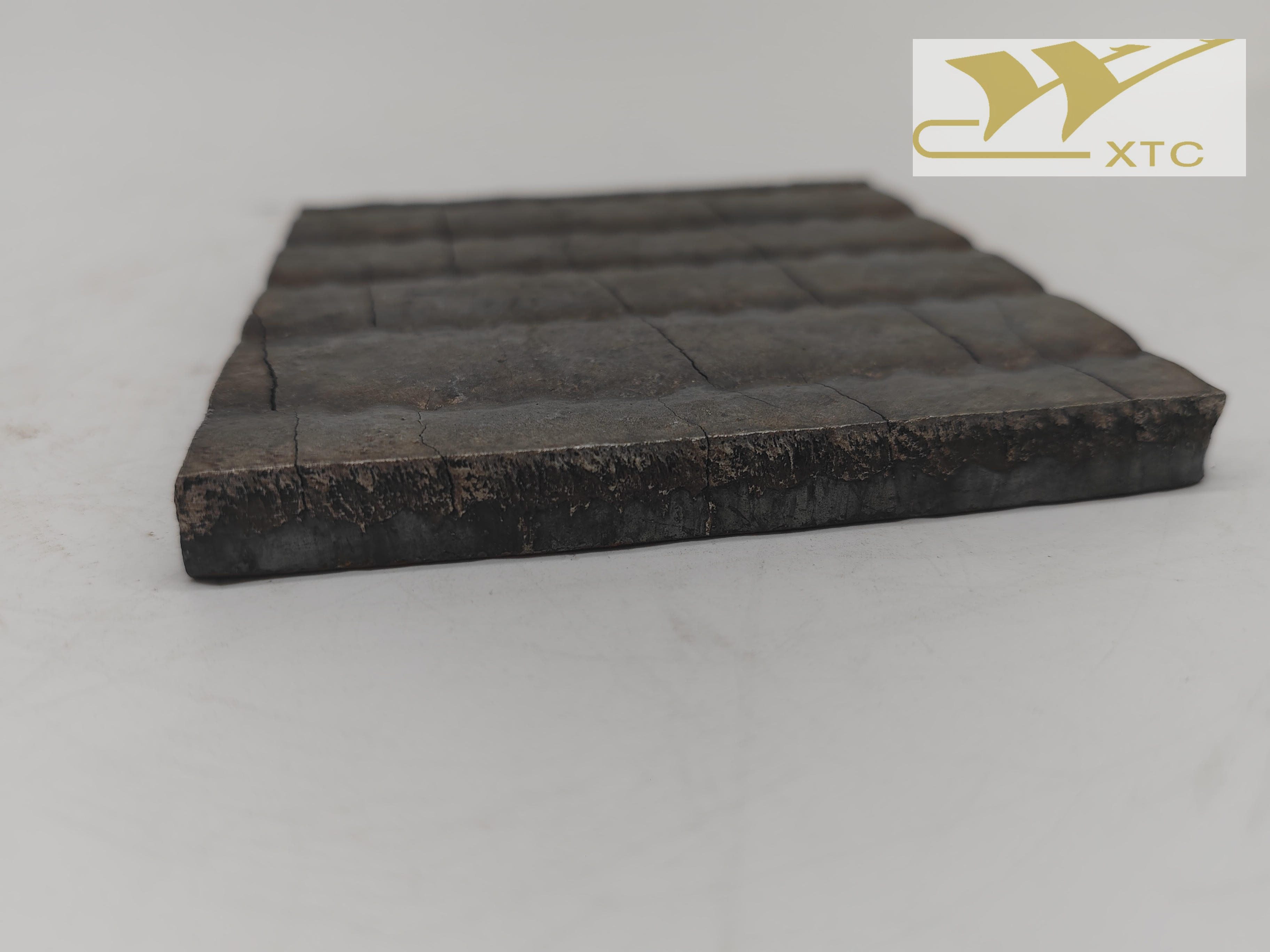

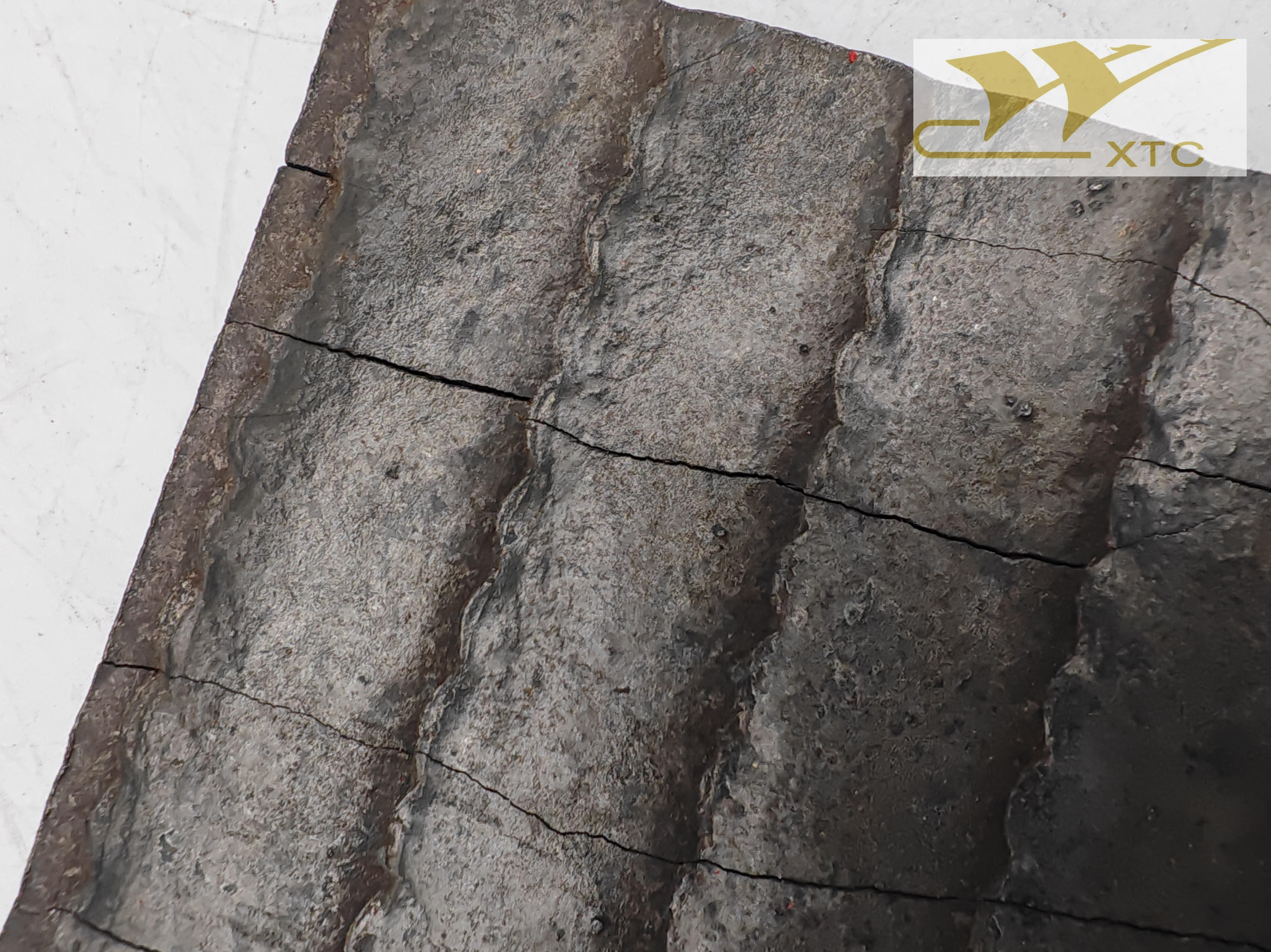

Chromium Carbide Overlay(CCO) Plates XR6+4

Chromium Carbide Overlay (CCO) Plates Also called Cco PlateXTC Wear plate are manufactured by welding one or multiple abrasion resistant layers on a medium or low carbon steel base plate. The overlay alloy has a high amout of chromium carbide hard particles.   The overlay and base plate, they have a metallurgical bonding. The overlay will penetrate into the base plate about 0.8-1.8mm, the bonding strength reach up to 350Mpa. We can customize wear parts according to drawings. Wear plate can be cut, bend into curve or cone, welding and drilling, it can be welded and assembled into kinds of wear parts   Model XR6+4 Substrate Material Q235 Substrate Thickness 6mm Overlay Ingredient C：3-4.5%, Cr: 15-27% Overlay Thickness 4mm Plate Size 3400mm*1400mm or Customized Hardness(HRC) 58-63 Application Power Industry, Steel Conveying, Cement Industry, Mining Industry, Port Conveying.   XTC is a company that specializes in the pr…
