Beverage Pipeline 150 micron 50 mesh Y-type filter

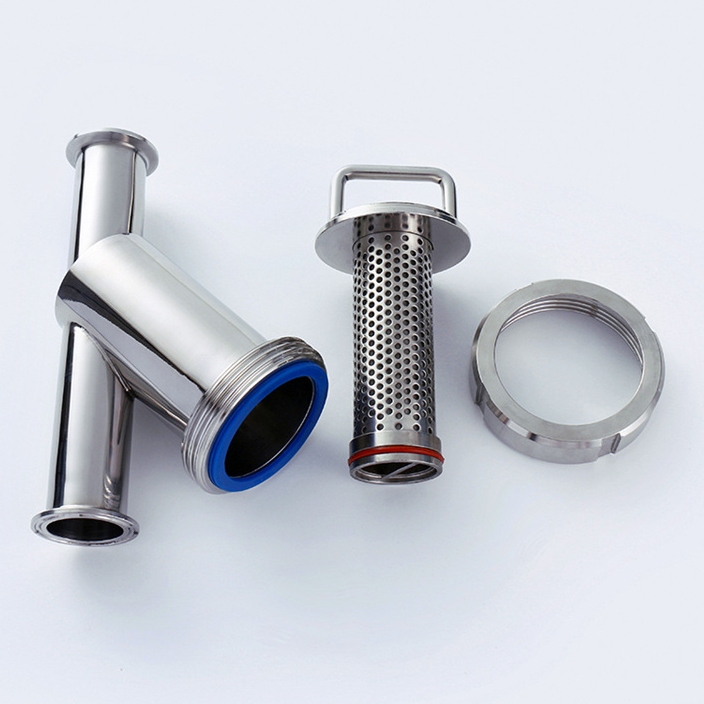

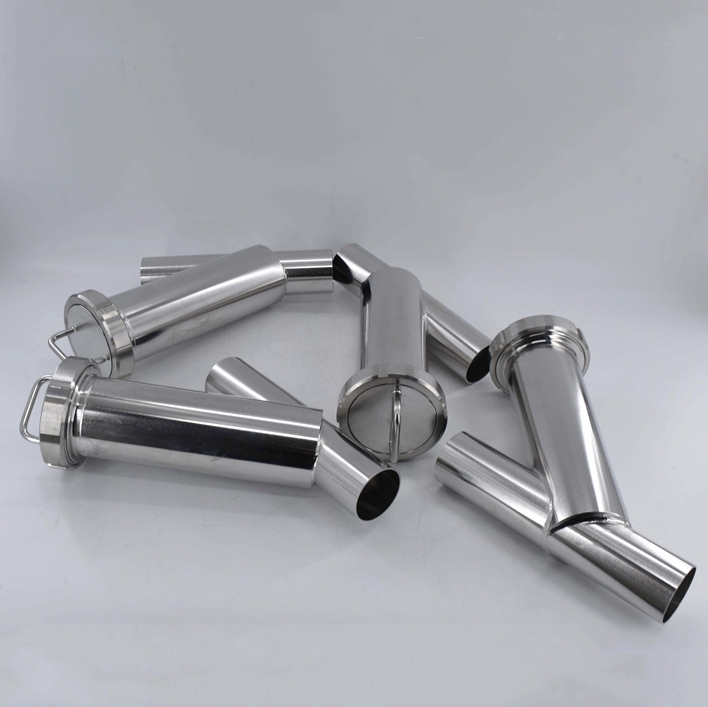

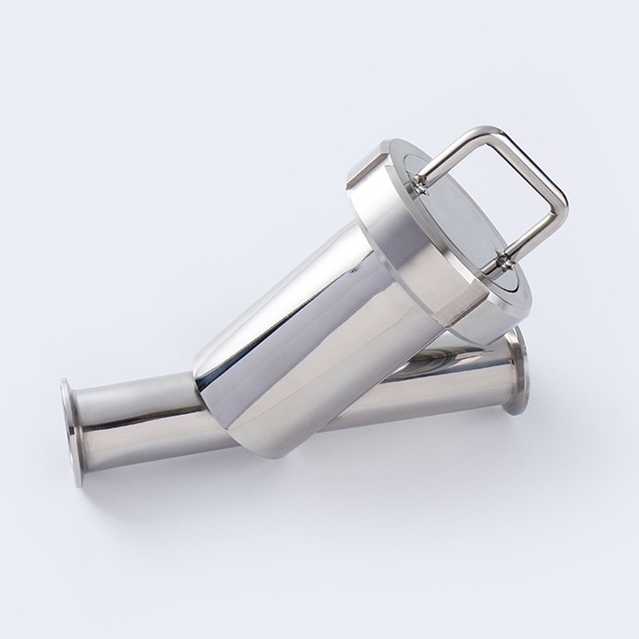

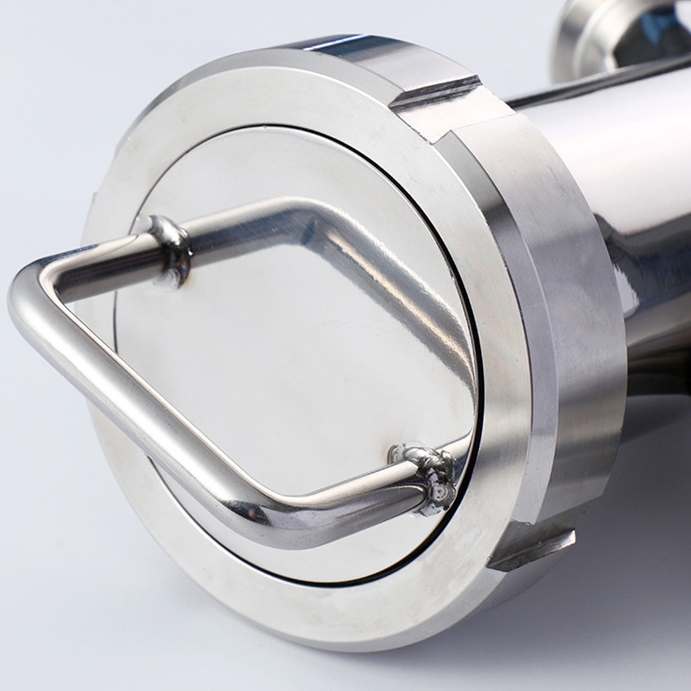

Beverage Purewater Pipeline 150 micron 50 mesh Y-type filter Y type Filters are used for filtering the solid particles in liquid. The inlet and outlet of Y type filter is in the same line. So it is widely used for pipeline. The filter housing and filter elements are seperate. So we can easily clean the filter element .There is non dead angle in Y filter, so we can clean the Y filter easily and completely. Features: Stainless Steel parts: SS304,SS316LSize: 1”-4”/DN25-DN100Connection ends: weld,clamped,Threaded,union/nutSeal: EPDM,siliconeInside mirror polished to Ra≤0.4μm,Outside can be mirror polish or Satin polish to 180 grit(Ra ≤0.6µm)Perforated hole diameter:0.5-3mmSreen mesh size & microns: 30-200meshMax working pressure:0.6MPa / 1.0MPaWorking temperature: -20℃ to +135℃   The sanitary stainless steel strainers series include inline straight filter,90 degree angle type(side entry port) strainer,Y type filter,Cartridge filter housing,tank brea…
