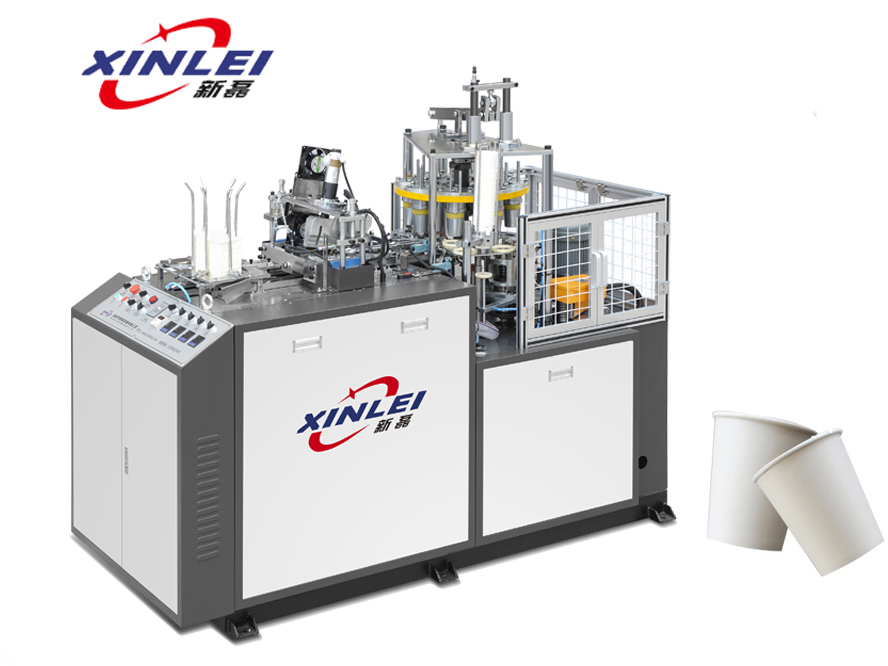

Automatic Medium Speed Paper Cup Machine

Main Technical Data: Paper Cup Sizes: 3,4,5,6.5,8,9,10.5,12,16,18 OZ or other sizes Row material: Single side(one side) or Double Sides PE(polyethylene) film coated paper Suitable paper weight: 170gsm--420 gsm (Recommend 190--320 gsm) Speed of making paper cups: 40--50 pcs per minute Limit of temperature control: 0--400 Centigrade Total power: 5.5KW Power source: 380 V,220V 50 Hz,60 Hz or other Customer needed Whole machine weight: 1450 kg Appearance size(L x W x H): 2500 x 1200 x 1400 mm Note:We can make the paper cup machine suitable for your requirement. Paper Cups Dimensions Range/Limit......Click image to Enlarge Paper cup bottom diameter (outside) , Min 30mm---Max 78 mm Paper cup top diameter (inside) , Min 45mm---Max125mm Paper cup height , Min 32mm ---Max 130 mm the top curling diameter, from 2.4mm to 5mm, this is decided by the paper weight(the paper thickness), Finished Products' Usage Finished Products' Usage:  Double sides PE coated paper cups are widely used for a…
