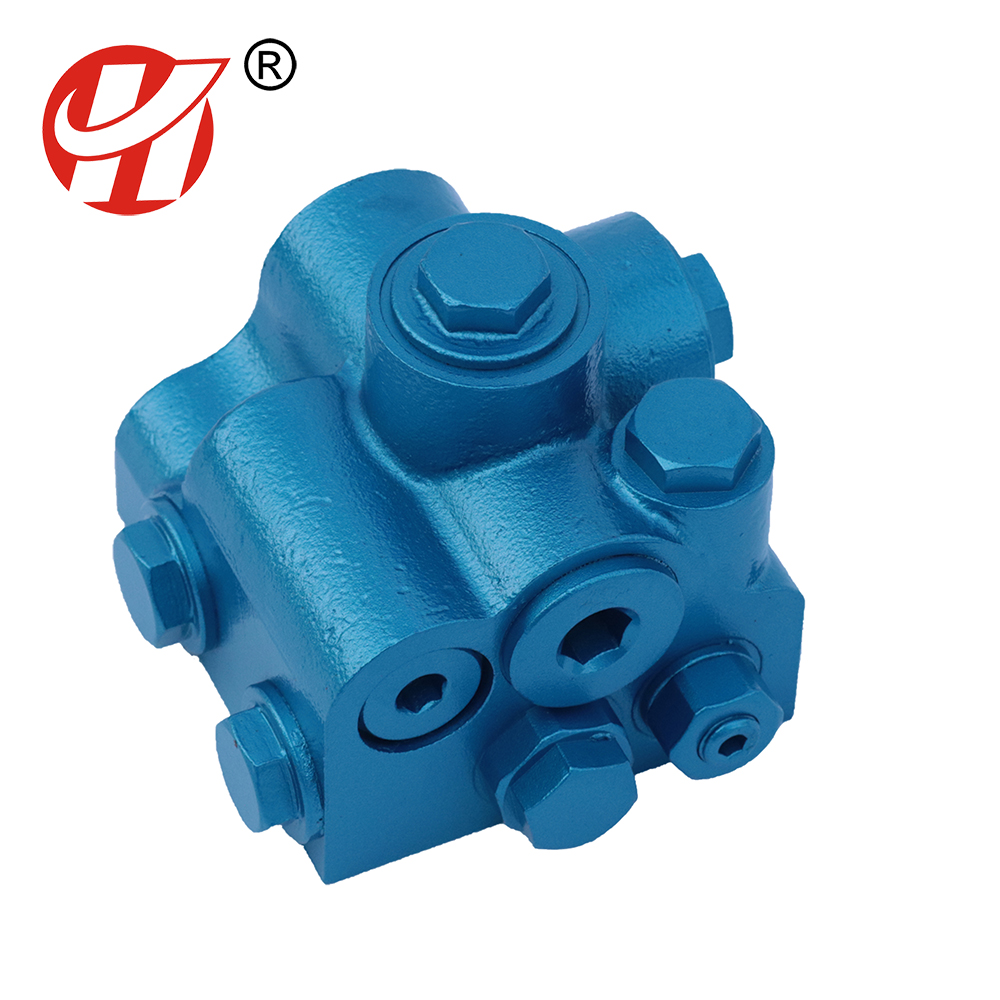

ACV3-L25F-00 single circuit charging valve

ACV3-L25F-00 single circuit charging valve The single circuit charging valve is integrated with overflow valve, the integration simplifies the pipeline layout. The valve can keep oil pressure in accumulator within the range of opening pressure and cutoff pressure. The switching pressure difference between opening and cutoff is about 20% of the cutoff pressure. Technical parameter Max. flow at port P: 120L/min Filling speed: 9L/min Max. system pressure: 25MPa Max. accumulator pressure: 20MPa Viscosity range: 10-380mm2/s Oil temperature range: -20℃—100℃ Oil cleanliness: The solid particle pollution level of oil and system shall be less than GB/T 14039-2002—/19/16 or NAS 1638 grade 10 Approx. weight: 6kg Hydraulic system schematic Installation connection size
