60m Long Mini Rangefinder Sensor LCD

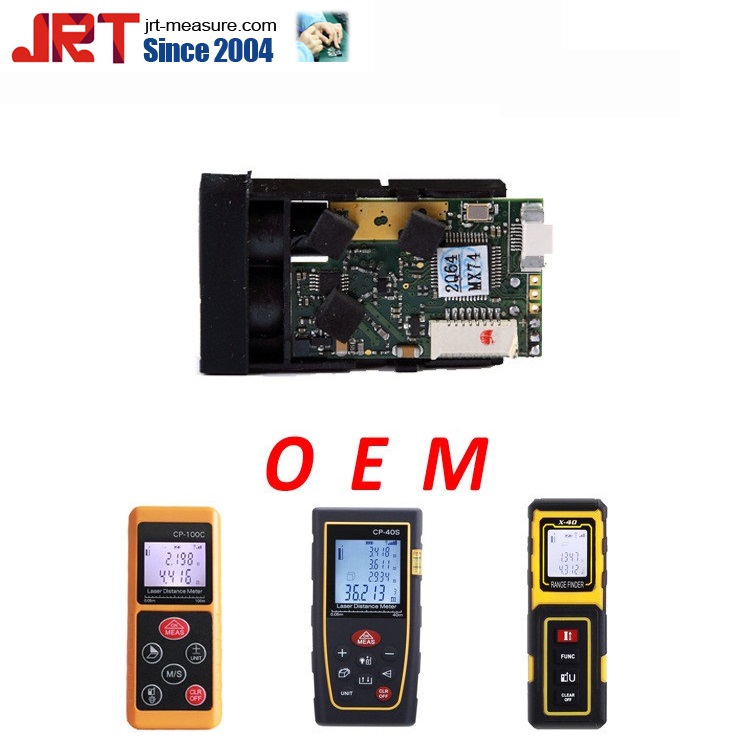

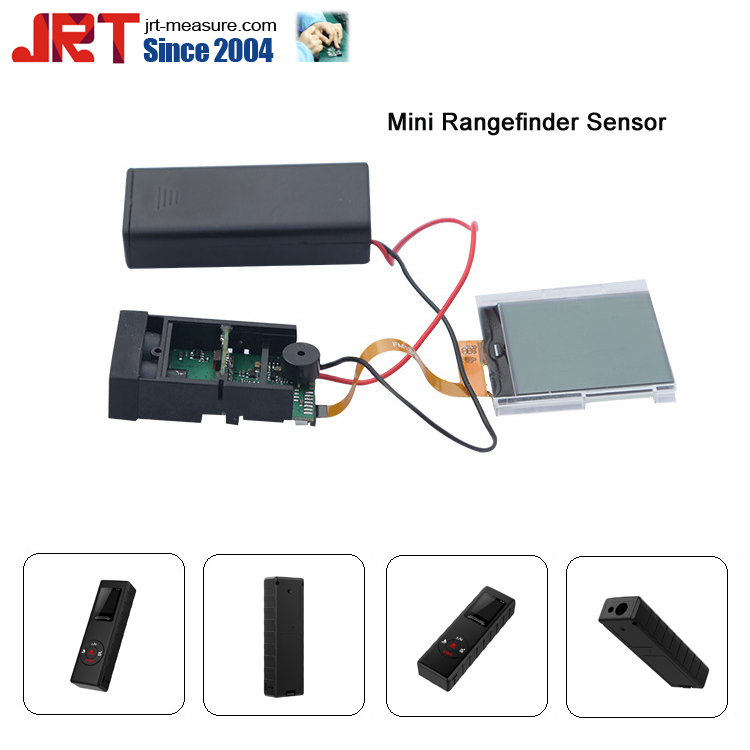

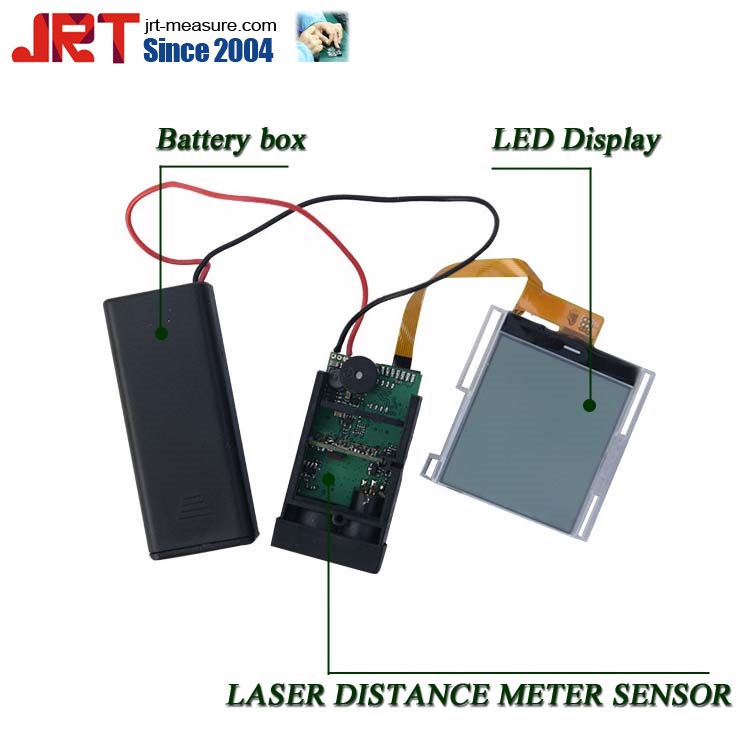

60m Long Mini Rangefinder Sensor LCD JRT meter is a manufacturer of a range of laser rangefinder distance sensors. These range sensors can measure extra long distance up to 60m with single-point measurement principle. With +-1mm high accuracy, customers usually used to make hand-held laser distance meter(Portable Mini Measure Tool). Welcome to order the sample of laser distance meter module with lcd to design your own mini rangefinder tools. Key parameters:  1. Reliable, fast, precise  Accuracy: +-1mm Measuring time: 0.4s-4s 2.Small, long range Size: 18*26*13mm Measuring range up to 60 m Here is the instrucitons of Laser Rangefinder Sensor how it works, hope can help: Detailed parameters Measuring time: 0.4s-4s Accuracy: ±3 mm Measuring Unit: mm Measuring Range: 3cm-60m Laser Class Class II Laser Type 620nm-690nm, <1mW Size: 48*26*13mm Weight About 13g Voltage DC2.0~3.3V Electrical Level TTL/CMOS Frequency 3 Hz Operating Temperatu…
