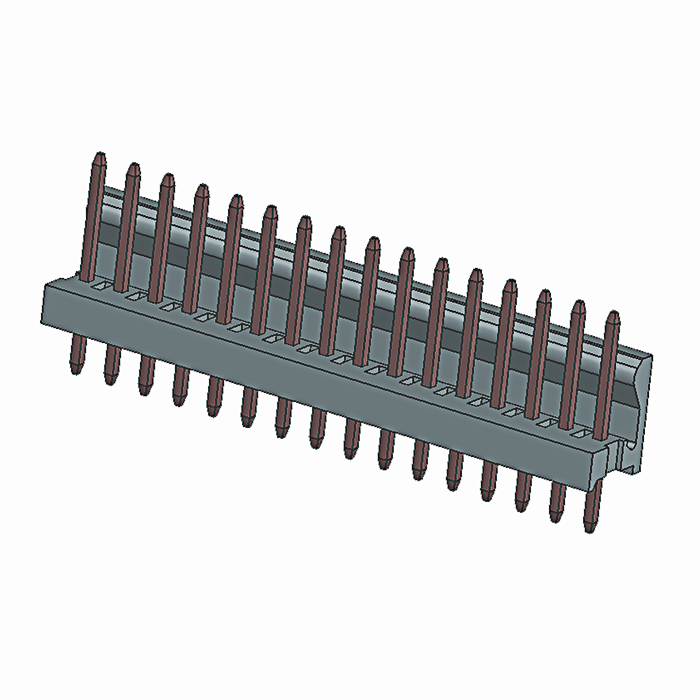

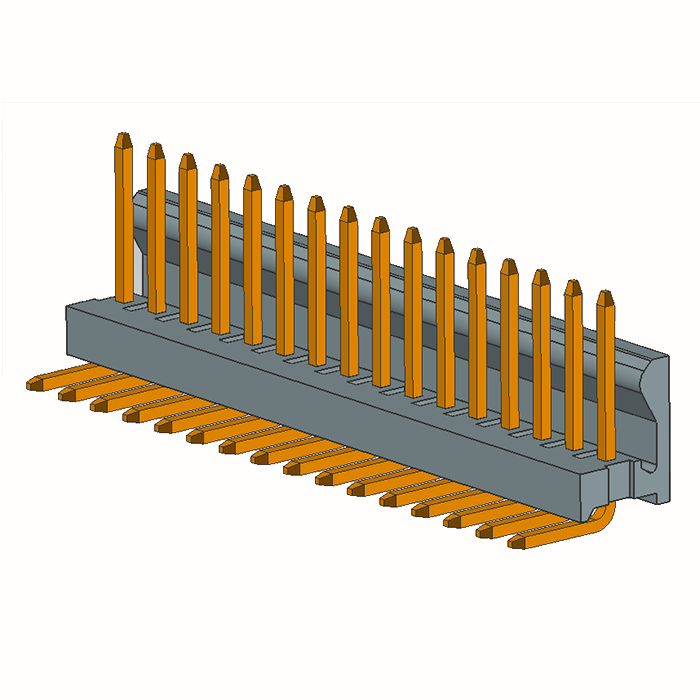

2.54mm Pitch Single Row Wafer Connector Series

Shenzhen Antenk Electronics Co., Ltd. introduced 2.54mm Pitch Single Row  Wafer Connector Series SPECIFICATIONS ·Voltage Rating：250V AC.DC ·Current Rating：2A AC,DC ·Contact Resistence:3.0mΩ Max ·Withstanding Voltage：2200V AC/minute ·Insulation Resistance:5000MΩ min ·Temperature Range：-40℃-+130℃ WAFER ·Part NO：AW2541S-XP    AW2541R-XP ·Material：Pin：Brass/Tin over Nickel            0.64SQ L=14.5MM            Terminal Retenion：2.0KG(MIN)            Insulator：Nylon 66，UL94V-0 White ·Mates With：AH2541-XP Series Housing ·Sloder:245±0.5°C   4±0.5S
