1mm Accuracy Laser Distance Sensor Module

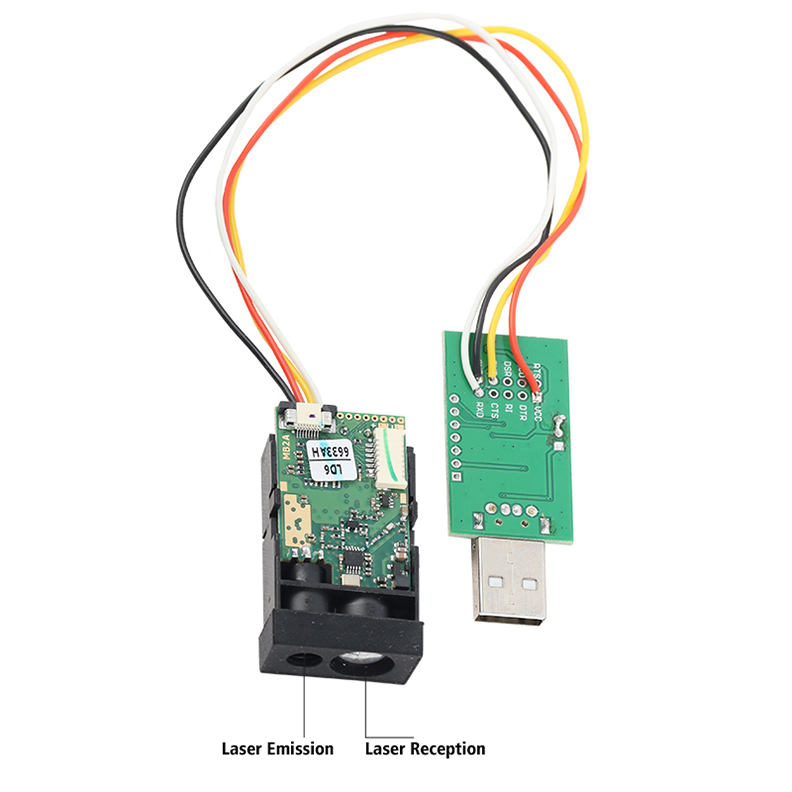

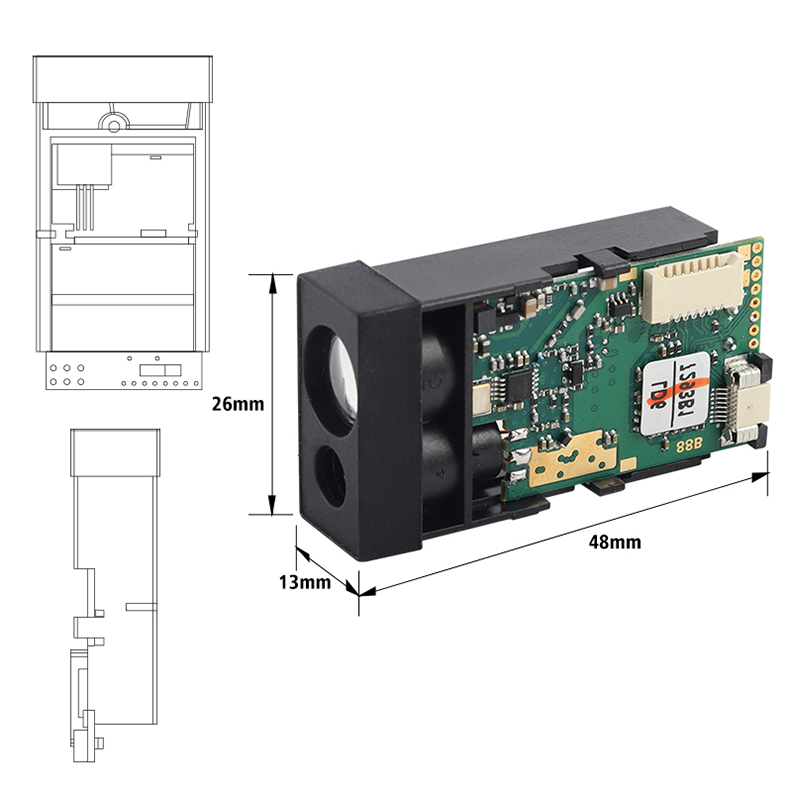

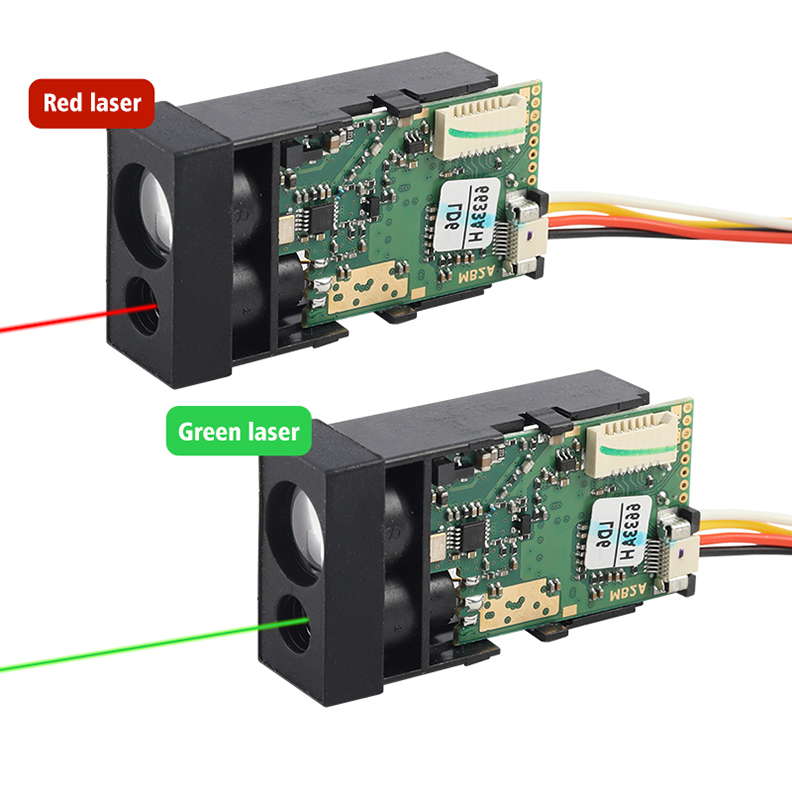

The high-precision laser ranging sensor LDK60 was developed independently by Chengdu Meskernel Integrated Technology Corporation. Its compact design allows OEM users to easily integrate it into systems and equipment, and its UART communication interface allows users to create and program their own applications. The sensor measures only 45*25*12 mm and weighs about 10g. Indoor range 0.03-80m（90% Rate of reflection） Output frequency 3Hz Absolute accuracy ±2mm Resolution 1mm Blind area 3cm Light 635nm，<1mW，Red laser, class II safety laser Communication interface UART TTL Serial level…
