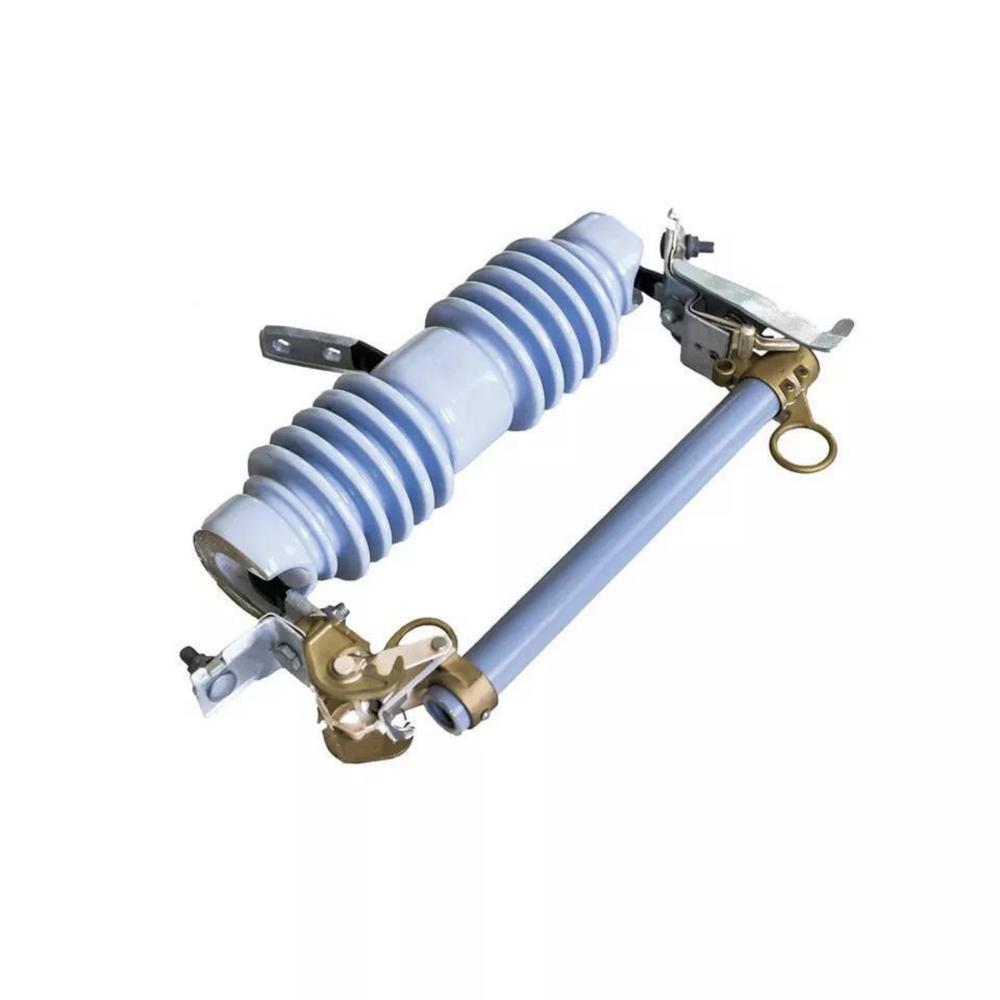

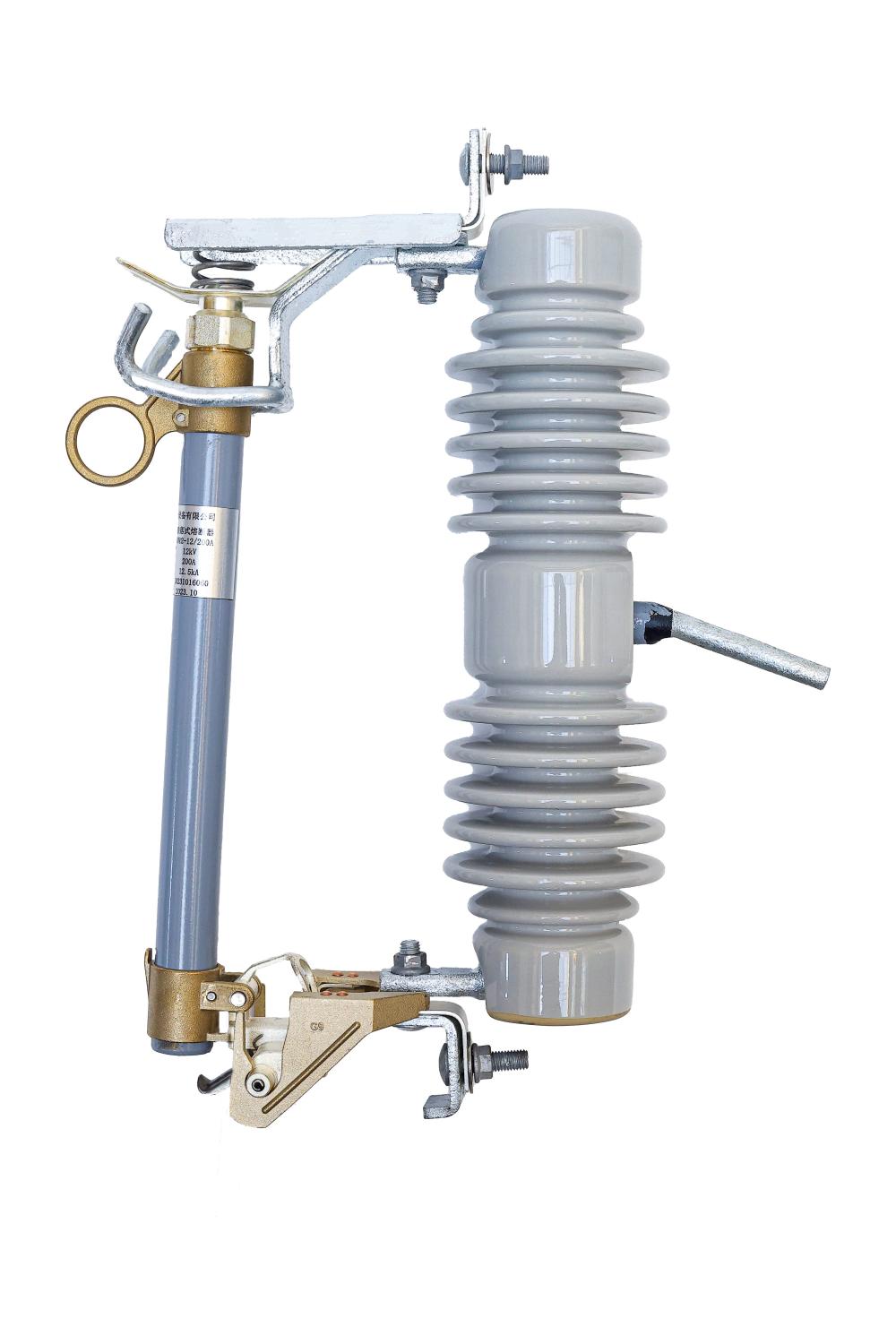

11kV 12kV 15kV 100A(200A) Porcelain Fuse Cutout

Technical Data Type Rated Voltage (kV) Rated current(A) Rated breaking current(kA) Lightning impulse withstanding voltage (peak value)kV Dry Power frequency withstanding voltage (kV) Creepage distance(mm) RW11/100 11 100 8 75 42 300 HRW11/200 11 200 12.5 75 42 300 RW15/100 15 100 8 85 44 380 HRW15/200 15 200 12.5 85 44 380 Cha…
